SIC5232420

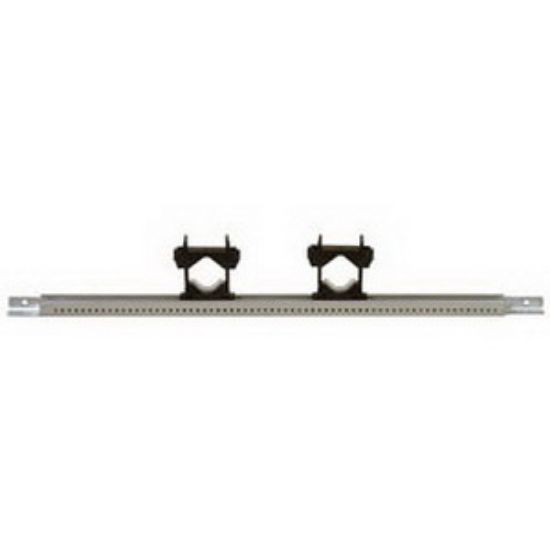

Sioux Chief PowerBar 523-2420 20 ga Zinc Plated Steel Universal Bracket with Channel Clamp, 14 - 26 in. L x 0.602 in. W x 0.529 in. H

Manufacturer: Sioux Chief

$0.00

Qty:

PowerBar Universal Bracket with Channel Clamp, 523-24 Series, 14 - 26 in. Length, 0.602 in. Width, 0.529 in. Height, Material: 20 ga Steel, Colour/Finish Name: Zinc-Plated, 150 - 45 lbs. at 14 - 24 in. Bracket Span, 70 - 12 lbs. at 14 - 21 in. Channel Clamp Work Load Limit, Other Physical Dimension: 1-7/8 in. Channel Clamp Post, 1/4 - 1-1/8 in. Channel Clamp Capacity, 1-7/8 in. Channel Clamp Base, 0.0203 in. on Centre Pilot Hole Spacing, 1 in. Tab Length, 0.15 in. Tab Hole Diameter, 0.1 in. Pilot Hole Diameter, 0.036 in. Metal Thickness, 1 in. Tab Screw Length, Temperature Rating: -10 to 200F

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	14 - 26 in.
Width	0.602 in.
Height	0.529 po
Material	20 ga Steel
Colour/Finish Name	Zinc-Plated
Temperature Rating	-10 to 200F
Work Load Limit	150 - 45 lbs. at 14 - 24 in. Bracket Span, 70 - 12 lbs. at 14 - 21 in. Channel Clamp
