SIGPWMC10SS

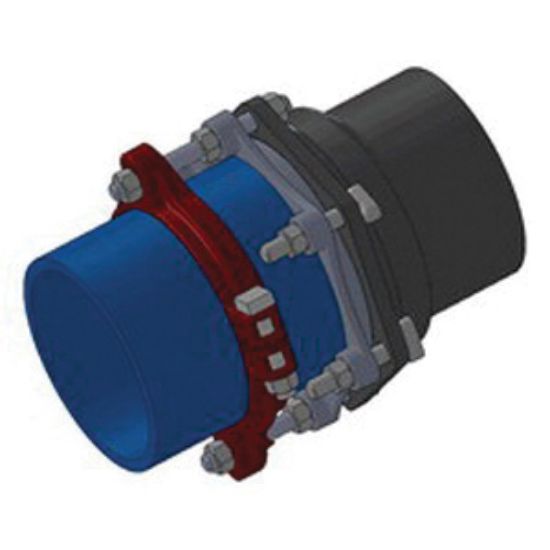

PV-Lok PWM-C10SS Red Alkyd Painted Ductile Iron Serrated Lock Restraint, 10 in., Mechanical Joint

$0.00

Qty:

PV-Lok Serrated Lock Restraint, PWM Series, Material: Ductile Iron, End Connection 1: Mechanical Joint, Fits Pipe Size: 10 in., Specifications - ANSI: ANSI A21.10, A21.11, A21.53, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM B-633 Type 3 Section 1, Specifications - AWWA: AWWA C-110, AWWA C-111, AWWA C-153, AWWA C-900, Specifications - FM Approved: Yes, 7/8 x 4-3/8 in. Bolt, Restraining Rod Size: (4) 3/4 x 9 in., Coating: Red Alkyd Paint, Number of Bolts: 2, Diameter - Outside 1: 11.1 in., Nut Size: (8) 3/4 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Bolt Size	7/8 x 4-3/8 in.
Coating	Red Alkyd Paint
Diameter - Outside 1	11.1 in.
End Connection 1	Mechanical Joint
Fits Pipe Size	10 in.
Number of Bolts	2
Nut Size	(8) 3/4 in.
Restraining Rod Size	(4) 3/4 x 9 in.
Specifications - ANSI	ANSI A21.10, A21.11, A21.53
Specifications - AWWA	AWWA C-110, AWWA C-111, AWWA C-153, AWWA C-900
Specifications - FM Approved	Yes
