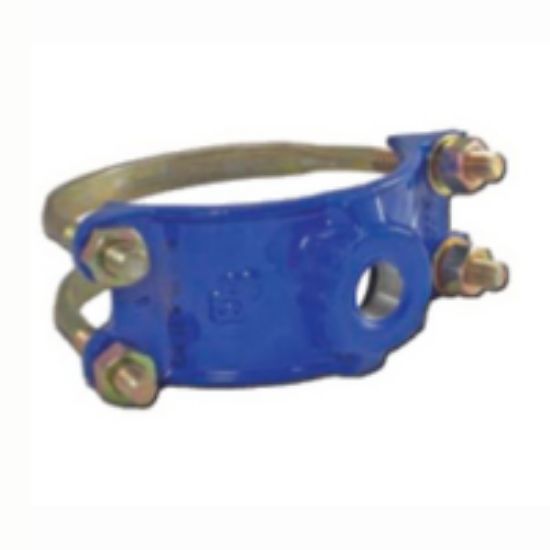

Picture of 313 6X1CC SERV D/B SDL (6.84-7.60)

313 6X1CC SERV D/B SDL (6.84-7.60)

31300076009000 313 Series 6 in. x 1 in. CC Flexi-Coat Fusion Bonded Epoxy Cast Ductile Iron Double Strap Service Saddle (6.84 in. - 7.6 in.)
Manufacturer: Generic / Generique
$0.00
2-Bale Service Saddle, 313 Series, 3-3/4 in. Width, 1.4 in. Height, Cast Ductile Iron, Coating: Flexi-Coat Fusion Bonded Epoxy, 6 in. Diameter - Outside, Fits Pipe Size: 6.84 - 7.6 in., Pressure - Maximum: 300 psi, Specifications - AWWA: AWWA C-213, AWWA C-111, AWWA C-800, Specifications - NSF: NSF 61G and 372, Specifications - NSF Certified: Yes, 1 in. Tap Size, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM D-2000, ASTM F-1941-10, ASTM A-307, ASTM F-844, 1-1/16 in. Socket Size
Products specifications
products.specs.attributename products.specs.attributevalue
Coating Flexi-Coat Fusion Bonded Epoxy
End Connection CC
End Connection 1 CC
Fits Pipe Size 6 in.
Height 1-2/5 in.
Material Cast Ductile Iron;Rubber
Material Type Buna-N
Maximum Temperature 180
Pressure - Maximum 300 psi
Range 6-5/6 in. - 7-3/5 in.
Specifications - ANSI ANSI 372;ANSI 61
Specifications - ASTM ASTM A-536 Grade 65-45-12;ASTM D-2000;ASTM F-1941-10;ASTM A-307;ASTM F-844;ASTM A-108;ASTM B-633
Specifications - AWWA AWWA C-213;AWWA C-111;AWWA C-800
Specifications - NSF NSF 61G;NSF 372
Specifications - NSF Certified Yes
Specifications - UL Listed Yes
Style Name 313 Series
Tap Size 1 in.
Temperature Range -20 to 180 Deg F
Weight 7.00 lb
Width 3-3/4 in.
Application Cast Iron Pipe;Ductile Iron Pipe;Steel Pipe;Water
Product Type Iron Double Strap Saddles
