SPAME4430

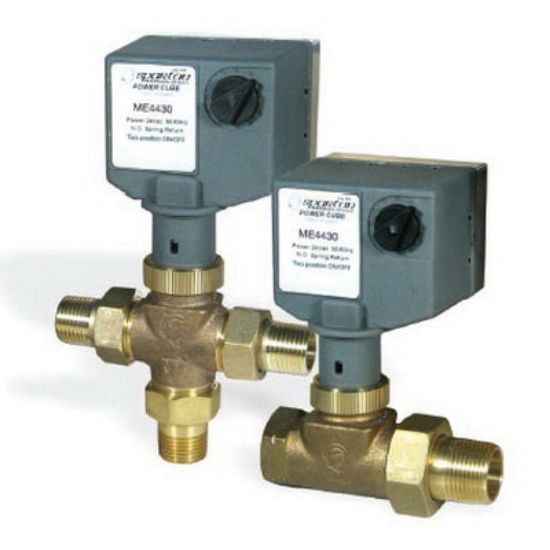

Spartan ME4430 Normally Open, Spring Return, 2-Position Power Cube Zone Valve Actuator, 50/60Hz, 24 VAC, 110 VAC, 220 VAC Operating

$0.00

Qty:

Normally Open Spring Return 2-Position Power Cube Zone Valve Actuator, 24 VAC, 110 VAC, 220 VAC Operating Volts, 8 VA, 0.3A at 24 VAC Power Consumption, Motor Type: Brushless Hysteresis, Capable of Continuous Stall, 50/60Hz Frequency Rating, 40 - 122F Ambient Temperature, IP20 (NEMA 1) Enclosure, Drive Time: 20 sec. Closing, 10 sec. Opening, Stroke: 4.5mm, Stem Force Rating: 27 lbs., Wiring Connections: 4 Leads 7/8 in. Strain Relief Connector

Products specifications

products.specs.attributename	products.specs.attributevalue
Ambient Temperature Rating	40 - 122F
Enclosure	IP20 (NEMA 1)
Frequency Rating	50/60Hz
Power Consumption	8 VA, 0.3A at 24 VAC
Volts	24 VAC, 110 VAC, 220 VAC Operating
