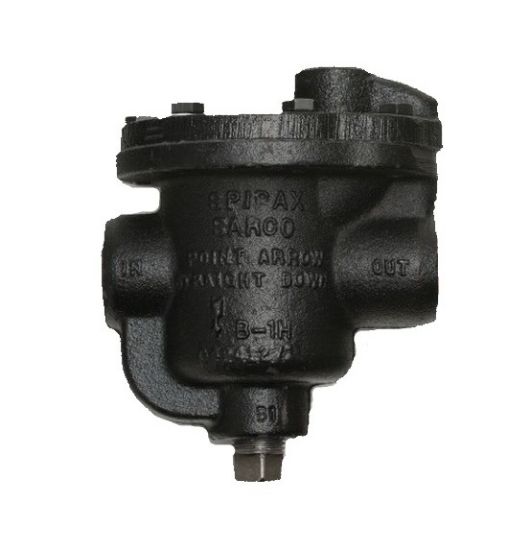

B1HS-15 3/4" BUCKET TRAP

B1HS15 B Series Cast Iron Inverted Bucket Steam Trap, 3/4 in., NPT

Manufacturer: Spirax Sarco

$0.00

Qty:

Inverted Bucket Steam Trap, B Series, Model: B1HS15, 5 in. Length, 4 in. Width, 6.3 in. Height, Material: Cast Iron, End Connection 1: NPT, End Connection 2: NPT, Recommended Valve Application: Steam, Specifications - ASTM: ASTM A-126 Class B, Full Port Valve Port Opening, Stainless Steel Valve Seat, Valve Size: 3/4 in., Pressure - Maximum: 15psig, Maximum Temperature: 450F, 1040 lbs/hr Capacity

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5 in.
Width	4 in.
Height	6.3 in.
Material	Cast Iron
Capacity	1040 lbs/hr
End Connection 1	NPT
End Connection 2	NPT
Maximum Temperature	450F
Pressure - Maximum	15psig
Recommended Valve Application	Steam
Valve Port Opening	Full Port
Valve Seat Material	Stainless Steel
Valve Size	3/4 in.
