STAPVC4020

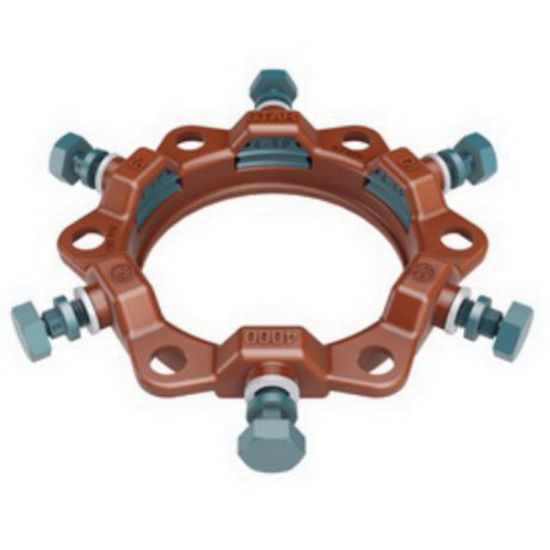

Stargrip PVC4020 Ductile Iron Wedge Action Joint Restraint, 20 in., Mechanical Joint

$0.00

Qty:

Stargrip Wedge Action Joint Restraint, 4000 Series, Material: Ductile Iron, End Connection 1: Mechanical Joint, Fits Pipe Size: 20 in., Specifications - ANSI: ANSI A21.11-00, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM F-593, Specifications - AWWA: AWWA C-110, AWWA C-111, AWWA C-153, AWWA C-900, AWWA C-905, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 3/4 in. Bolt, Coating: Thermally Cured Fluoropolymer Epoxy Coated Wedge, RAL 3016 Coral Red Alkyd Enamel Coated Gland, Number of Bolts: 14, Diameter - Outside 1: 21.6 in., Number of Wedges: 14

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Bolt Size	3/4 in.
Coating	Thermally Cured Fluoropolymer Epoxy Coated Wedge, RAL 3016 Coral Red Alkyd Enamel Coated Gland
Diameter - Outside 1	21.6 in.
End Connection 1	Mechanical Joint
Fits Pipe Size	20 in.
Number of Bolts	14
Number of Wedges	14
Specifications - ANSI	ANSI A21.11-00
Specifications - AWWA	AWWA C-110, AWWA C-111, AWWA C-153, AWWA C-900, AWWA C-905
Specifications - FM Approved	Yes
Specifications - UL Listed	Yes
