10" SF410G ADAPTER FLG F/DI PIPE STAR

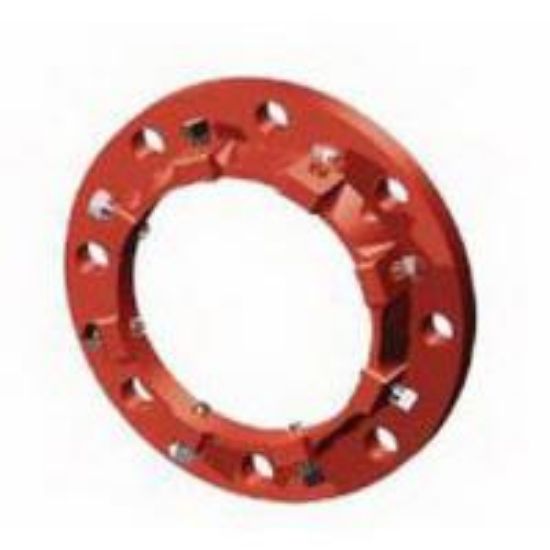

SF410G Ductile Iron Flange Adapter, 10 in., Mechanical Joint

$0.00

Qty:

Flange Adapter, 400 Series, 2.19 in. Height, Ductile Iron, End Connection 1: Mechanical Joint, Pressure - Maximum: 175 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, Specifications - ASTM: ASTM A-536 Grade 65-45-12, Diameter - Outside 1: 16 in., Colour/Finish Name: Coral Red Gland, Fits Pipe Size: 10 in., Specifications - ANSI: ANSI A21.10, ANSI A21.11, ANSI A21.15, ANSI A21.53, ANSI B16.1 Class 125, Range: 11.1 in., Specifications - AWWA: AWWA C-110, AWWA C-111, AWWA C-115, AWWA C-153, 1 in. Bolt Hole Diameter, Import Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	2.19 po
Material	Ductile Iron
Bolt Hole Diameter	1 in.
Colour/Finish Name	Coral Red Gland
Diameter - Outside 1	16 in.
End Connection 1	Mechanical Joint
Fits Pipe Size	10 in.
Pressure - Maximum	175 psi
Range	11.1 in.
Specifications - ANSI	ANSI A21.10, ANSI A21.11, ANSI A21.15, ANSI A21.53, ANSI B16.1 Class 125
Specifications - AWWA	AWWA C-110, AWWA C-111, AWWA C-115, AWWA C-153
Specifications - FM Approved	Yes
Specifications - UL Listed	Yes
