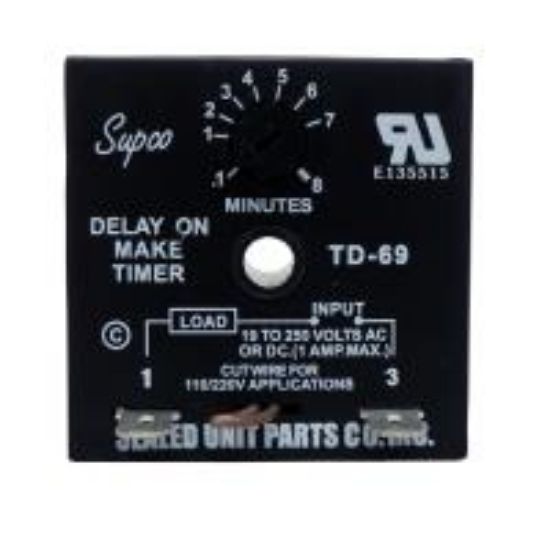

TD69 TIME DELAY RELAY 6S TO 8M

Supco TD69 Time Delay Relay, 6 sec. - 8 min. delay, 19 - 250 VAC/VDC

Manufacturer: Supco

$0.00

Qty:

Time Delay Relay, TD60 Series, 2 in. Length, 2 in. Width, 3/4 in. Height, Temperature Rating: 0 - 160F, 19 - 250 VAC/VDC Volts, Connection Type: 1/4 in. Quick Male Terminals or 6 in. Long Leads, 50/60Hz Frequency Rating, AMP: 1A, 10A Inrush, 6 sec. - 8 min. delay Timing Range

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2 in.
Width	2 in.
Height	3/4 po
AMP	1A, 10A Inrush
Connection Type	1/4 in. Quick Male Terminals or 6 in. Long Leads
Frequency Rating	50/60Hz
Temperature Rating	0 - 160F
Timing Range	6 sec. - 8 min. delay
Volts	19 - 250 VAC/VDC
