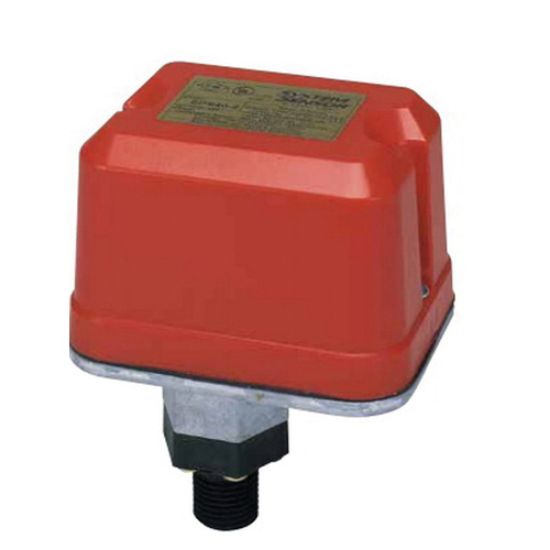

EPSA40-2P ALARM PRESSURE SWITCH

System Sensor EPSA40-2P High/Low Supervisory Pressure Switch For Dry Pipe System or Pressure Tanks and Water Pressure Supplies, 10A at 125/250 VAC, 2.5A at 6/12/24 VDC, 1/2 in.

$0.00

Qty:

High/Low Supervisory Pressure Switch, EPSA40 Series, 4-1/4 in. Length, 3.325 in. Width, 5.12 in. Height, AMP: 10A at 125/250 VAC, 2.5A at 6/12/24 VDC, End Connection 1: MNPT, Fitting Size 1: 1/2 in., Maximum Temperature: 160F, Pressure - Maximum: 250 psi, Specifications - FM Approved: Yes, Specifications - NEMA: NEMA 4, Specifications - UL Listed: Yes

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4-1/4 in.
Width	3.325 in.
Height	5.12 in.
AMP	10A at 125/250 VAC, 2.5A at 6/12/24 VDC
End Connection 1	MNPT
Fitting Size 1	1/2 in.
Maximum Temperature	160F
Pressure - Maximum	250 psi
Specifications - FM Approved	Yes
Specifications - NEMA	NEMA 4
Specifications - UL Listed	Yes
