0011F42IFC 1/8HP L/FLNG CIRC 115V

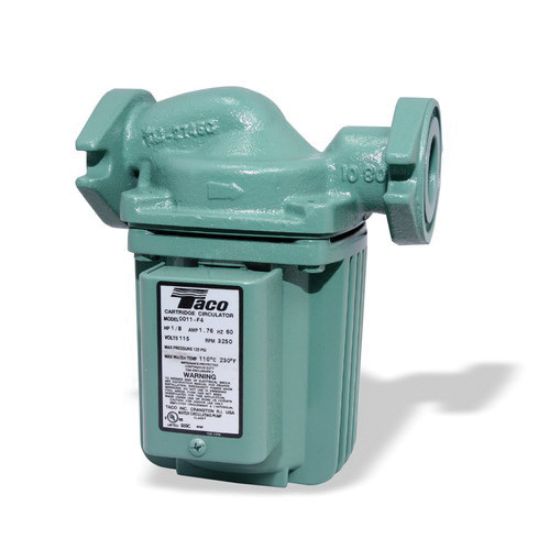

Taco 0011-F4-2IFC 1/8 hp flanged CI circulator c/w check valve

Manufacturer: Taco

$0.00

Qty:

Cartridge Circulator with Integral Flow Check, 5-1/2 in. Length, 7-1/2 in. Width, 6-1/2 in. Height, Material: Cast Iron, AMP: 1.76A, End Connection 1: Flanged, Fitting Size 1: 3/4, 1, 1-1/4, 1-1/2 in., Flow Rate: 30 gpm, Horsepower: 1/8 hp, Lead Law Compliant: Yes, 31 ft. Maximum Head, Maximum Temperature: 230F Fluid, Phase: 1 PH, Pressure - Maximum: 150 psi, PSC Pump Motor, RPM: 3250 RPM, Specifications - NSF: NSF 372, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, 115V at 60 Hz, 60Hz Frequency Rating, Ceramic Shaft, Carbon Bearing

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5-1/2 in.
Width	7-1/2 in.
Height	6-1/2 in.
Material	Cast Iron
AMP	1.76A
Bearing Material	Carbon
End Connection 1	Flanged
Fitting Size 1	3/4, 1, 1-1/4, 1-1/2 in.
Frequency Rating	60Hz
Horsepower	1/8 hp
Lead Law Compliant	Yes
Maximum Feet of Head	31 ft.
Maximum Temperature	230F Fluid
Phase	1 PH
Pressure - Maximum	150 psi
Pump Motor Type	PSC
RPM	3250 RPM
Shaft Material	Ceramic
Specifications - NSF	NSF 372
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
