0012-MSF1-IFC 1/6HP FLG 3SPD CI CIRC

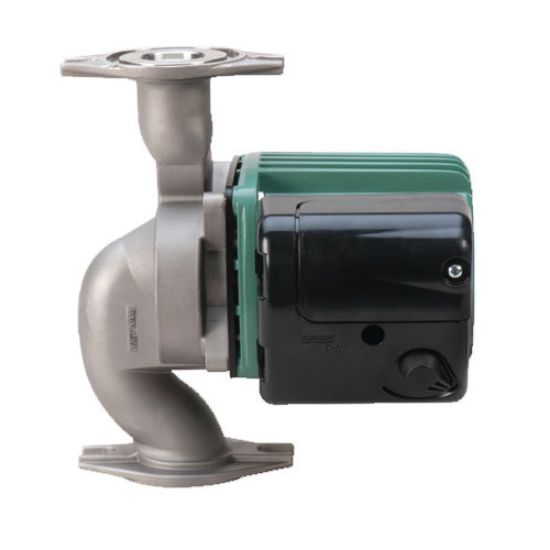

Taco 0012-MSF1-IFC 1/6 hp flanged 3 speed CI circulator c/w 1-1/2" CI flanges

Manufacturer: Taco

$0.00

Qty:

Circulator with Integral Flow Check, 6-1/4 in. Length, 8-1/8 in. Width, 8-1/2 in. Height, Material: Cast Iron, AMP: 1.6A, End Connection 1: Flanged, Fitting Size 1: 3/4, 1, 1-1/4, 1-1/2 in., Flow Rate: 45 gpm, Horsepower: 1/6 hp, Lead Law Compliant: Yes, 15 ft. Maximum Head, Maximum Temperature: 210F Fluid, Phase: 1 PH, Pressure - Maximum: 125 psi, PSC Pump Motor, RPM: 3250 RPM, Specifications - NSF: NSF 372, Specifications - NSF Certified: Yes, Specifications - UL Listed: Yes, 115V at 60 Hz, Number of Speeds: 3, 60Hz Frequency Rating, Ceramic Shaft, Ceramic Bearing, 150W Speed 1, 170W Speed 2, 200W at Speed 3 Power Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6-1/4 in.
Width	8-1/8 in.
Height	8-1/2 in.
Material	Cast Iron
AMP	1.6A
Bearing Material	Ceramic
End Connection 1	Flanged
Fitting Size 1	3/4, 1, 1-1/4, 1-1/2 in.
Frequency Rating	60Hz
Horsepower	1/6 hp
Lead Law Compliant	Yes
Maximum Feet of Head	15 ft.
Maximum Temperature	210F Fluid
Phase	1 PH
Power Rating	150W Speed 1, 170W Speed 2, 200W at Speed 3
Pressure - Maximum	125 psi
Pump Motor Type	PSC
RPM	3250 RPM
Shaft Material	Ceramic
Specifications - NSF	NSF 372
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
