007-F5-7IFC 1/30HP FLNG CI CIRC C/W CHKV

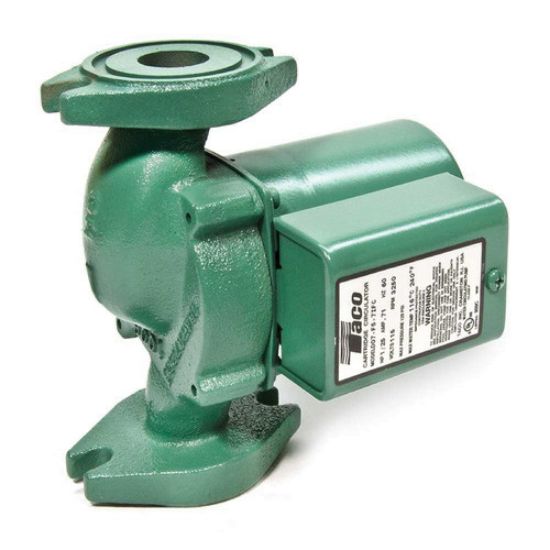

Taco 007-F5-7IFC Cast Iron Cartridge Circulator Pump with Integral Flow Check, 115V at 60Hz, 1 PH, 1/25 hp

Manufacturer: Taco

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6-1/8 in.
Width	5 in.
Height	6-3/8 in.
Material	Cast Iron
AMP	0.71A
Bearing Material	Carbon
End Connection 1	Flanged
Fitting Size 1	3/4 - 1-1/2 in.
Horsepower	1/25 hp
Impeller Material	Non-Metallic
Maximum Feet of Head	0 - 8.5 ft.
Maximum Temperature	40 - 230F
Phase	1 PH
Pressure - Maximum	125 psi
Pump Motor Type	PSC
Pump Phase	1 PH
RPM	3250 RPM
Shaft Material	Ceramic
Specifications - NSF Certified	Yes
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
Volts	115V
