TAC5004C3

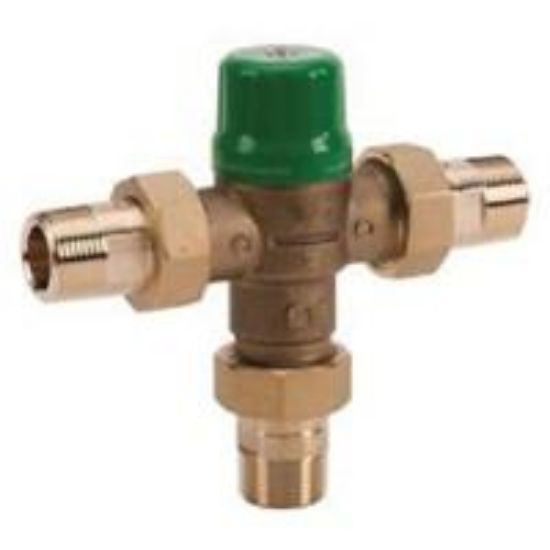

Taco 5004-C3 1" Sweat Union Connections

Manufacturer: Taco

$0.00

Qty:

Mixing Valve, 5000 Series, 5.4 in. Length, 6.1 in. Height, Forged Brass, End Connection 1: Sweat Union, Pressure - Maximum: 230 psi Inlet, Flow Rate: 1 - 20 gpm, Valve Size: 1 in., Maximum Temperature: 120 - 180F Hot Inlet, 39 - 80F Cold Inlet, 27F Differential Between Hot Supply and Mixed, 85 - 175F Outlet, Lead Law Compliant: Yes, 2.3 Flow Co-Efficient (Cv), Specifications - ASSE Standards: ASSE 1017

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5.4 in.
Height	6.1 po
Material	Forged Brass
End Connection 1	Sweat Union
Flow Co-Efficient (Cv)	2.3
Lead Law Compliant	Yes
Maximum Temperature	120 - 180F Hot Inlet, 39 - 80F Cold Inlet, 27F Differential Between Hot Supply and Mixed, 85 - 175F Outlet
Pressure - Maximum	230 psi Inlet
Specifications - ASSE Standards	ASSE 1017
Valve Size	1 in.
