TACMA407040

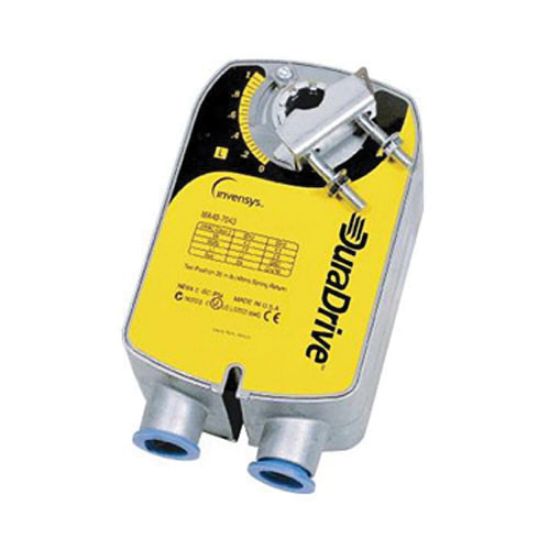

DuraDrive 2-Position Spring Return Damper Actuator, 4 in. Width, 6-51/64 in. Height, Material: Rugged Die-Cast Housing, 120 VAC Volts, 3.8W at 50Hz, 3.4W at 60Hz Running, 1.6W at 50Hz, 1.2W at 60Hz Holding Watts, 6.4 at 50Hz, 4.3 at 60Hz VA Rating, 35 in-lbs Minimum, 150 in-lbs Maximum Stall Torque Rating, Timing: Less Than 50 sec. Powered, Less Than 28 sec. Spring Return, 50/60Hz Frequency Rating, Depth: 3-1/2 in., Control Signal: On/Off SPST Contacts or Triacs (500 mA), Motor Type: Brush, -22 to 140F Ambient Ambient Temperature, Humidity Range: 5 - 95% RH Non-Condensing, Electrical Connection: 3 ft. Long Appliance Cable, 1/2 in. Conduit Connectors, Up to 5/8 in. Round, 1/2 in. Square Shaft, Enclosure Rating: NEMA 2, IP54
