TACMA417073

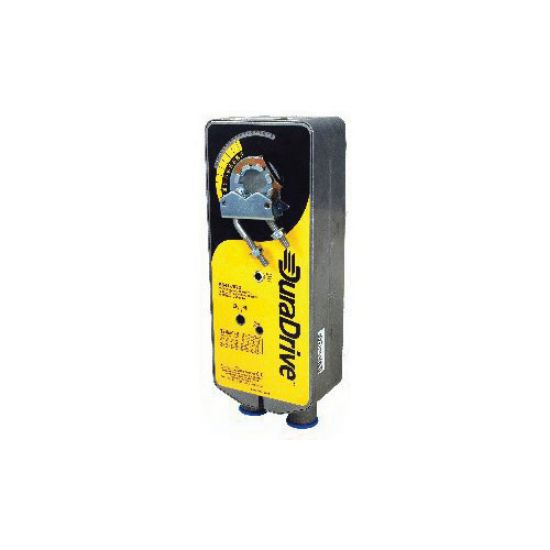

DuraDrive MA41-7073 Rugged Die-Cast Housing 2-Position Spring Return Manual Override Damper Actuator, On/Off SPST Contacts or Triacs, 24 VAC
Manufacturer: Robertshaw
$0.00
DuraDrive 2-Position Spring Return Manual Override Damper Actuator, 4 in. Width, 10-1/2 in. Height, Material: Rugged Die-Cast Housing, 24 VAC Volts, 3.2W at 50/60Hz Running, 0.8W at 50/60Hz Holding Watts, 4.8 at 50/60Hz VA Rating, 60 in-lbs Minimum, 250 in-lbs Maximum Stall Torque Rating, Timing: Less Than 80 sec. Powered, Less Than 40 sec. Spring Return, 50/60Hz Frequency Rating, Depth: 3-1/2 in., Control Signal: On/Off SPST Contacts or Triacs (500 mA), Motor Type: Brush, -22 to 140F Ambient Ambient Temperature, Humidity Range: 5 - 95% RH Non-Condensing, Electrical Connection: 3 ft. Long Appliance Cable, 1/2 in. Conduit Connectors, Enclosure Rating: NEMA 2, IP54
Products specifications
products.specs.attributename products.specs.attributevalue
Width 4 in.
Height 10-1/2 po
Material Rugged Die-Cast Housing
Ambient Temperature Rating -22 to 140F Ambient
Depth 3-1/2 in.
Electrical Connection 3 ft. Long Appliance Cable, 1/2 in. Conduit Connectors
Enclosure Rating NEMA 2, IP54
Frequency Rating 50/60Hz
Humidity Range 5 - 95% RH Non-Condensing
Torque Rating 60 in-lbs Minimum, 250 in-lbs Maximum Stall
VA Rating 4.8 at 50/60Hz
Volts 24 VAC
Watts 3.2W at 50/60Hz Running, 0.8W at 50/60Hz Holding
