TACMA417150

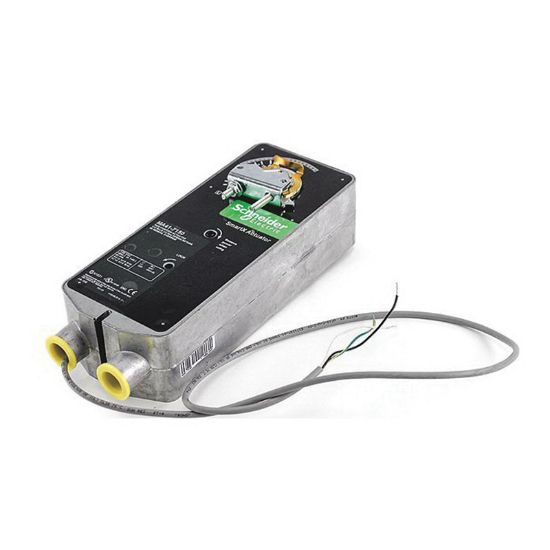

DuraDrive 2-Position Spring Return Actuator, MA41-715x Series, 4 in. Width, 10-1/2 in. Height, 120 VAC Volts, AMP: 500 mA, Running: 8.8W at 50Hz, 8.4W at 60Hz, Holding: 5W at 50Hz, 3.6W at 60Hz Watts, 11.7 at 50Hz, 10 at 60Hz VA Rating, 133 - 350 in-lbs Torque Rating, Timing: Less Than 90 sec. Powered, Less Than 30 sec. Spring Return at 70 Degree, Number of Auxiliary Switch: 0, Depth: 3-1/2 in., Control Signal: On/Off SPST or Triacs, Electrical Connection: 3 ft. Appliance Cable, 1/2 in. Conduit, Shaft: Up to 3/4 in. Round, 1/2 in. Square, Humidity Range: 5 - 95% RH Non-Condensing, Temperature Rating: -22 to 140F Operating, NEMA 1 (IEC IP30), NEMA 2 (IEC IP54) Enclosure
