TACMS407043

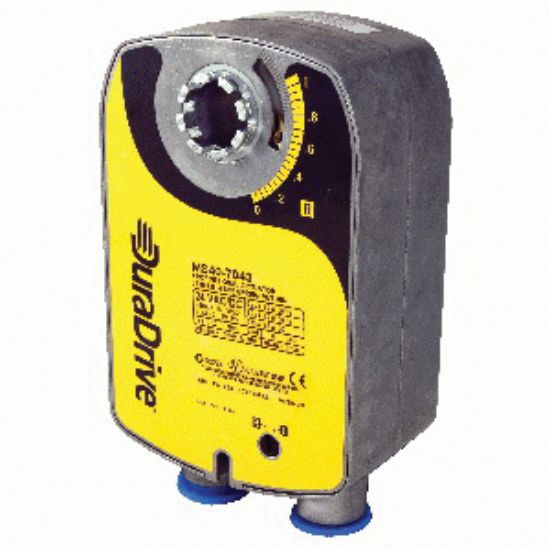

DuraDrive MS40-7043 Spring Return Actuator, 24 VAC, 22 - 30 VDC, Proportional Control Signal

Manufacturer: Robertshaw

$0.00

Qty:

DuraDrive Spring Return Actuator, 24 VAC, 22 - 30 VDC Volts, AMP: 4 - 20 mA Input, 0.5 mA Output, Running: 4.2W at 50/60Hz, Holding: 2.4W at 50/60Hz, 0.15W at DC Amps Watts, 5.6 at 50/60Hz VA Rating, 35 - 150 in-lbs Torque Rating, Timing: Less Than 130 sec. Powered, Less Than 25 sec. Spring Return at 70 Degree, Number of Auxiliary Switch: 0, Control Signal: Proportional, Electrical Connection: 3 ft. Plenum Rated Cable, Shaft: Up to 5/8 in. Diameter or Up to 1/2 in. Square, Humidity Range: 15 - 95% RH Non-Condensing, Temperature Rating: -22 to 140F Operating, NEMA 2 (IEC IP54) Enclosure

Products specifications

products.specs.attributename	products.specs.attributevalue
AMP	4 - 20 mA Input, 0.5 mA Output
Electrical Connection	3 ft. Plenum Rated Cable
Enclosure	NEMA 2 (IEC IP54)
Humidity Range	15 - 95% RH Non-Condensing
Temperature Rating	-22 to 140F Operating
Torque Rating	35 - 150 in-lbs
VA Rating	5.6 at 50/60Hz
Volts	24 VAC, 22 - 30 VDC
Watts	Running: 4.2W at 50/60Hz, Holding: 2.4W at 50/60Hz, 0.15W at DC Amps
