VR3452-HY1-FC1A01 VAR.SPD ECM 230V

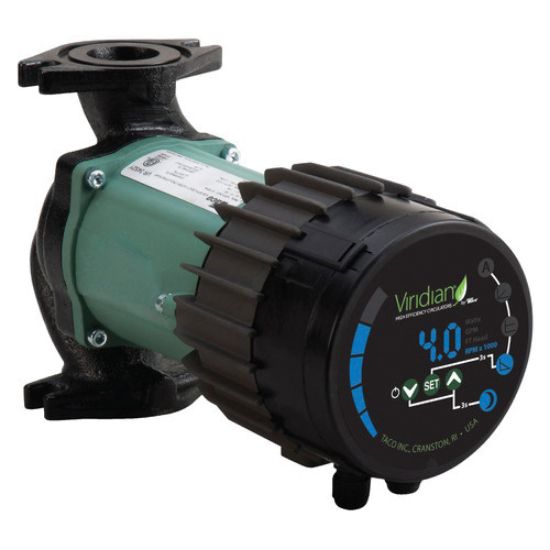

Taco Viridian VR3452-HY1-FC1A01 Cast Iron Circulator Pump with Integrated Electronic Regulation, 115V at 60Hz, 1 PH, 1/100 - 1/4 hp

Manufacturer: Taco

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	12-1/16 in.
Width	4-5/8 in.
Height	6-3/8 in.
Material	Cast Iron
AMP	2.5A
Bearing Material	Graphite
Enclosure Rating	IP44
End Connection 1	Flanged
Environmental Conditions	32 - 104F Ambient Temperature, Class 2 Protection
Fitting Size 1	3/4 - 1-1/2 in.
Horsepower	1/100 - 1/4 hp
Impeller Material	Non-Metallic
Maximum Feet of Head	34 ft.
Maximum Temperature	14 - 230F
Phase	1 PH
Power Rating	180W
Pressure - Maximum	145 psi
Pump Motor Type	ECM
Pump Phase	1 PH
RPM	1100 - 4400 RPM
Shaft Material	Stainless Steel
Specifications - CSA Certified	CSA 22.2 No 108
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
Volts	115V
