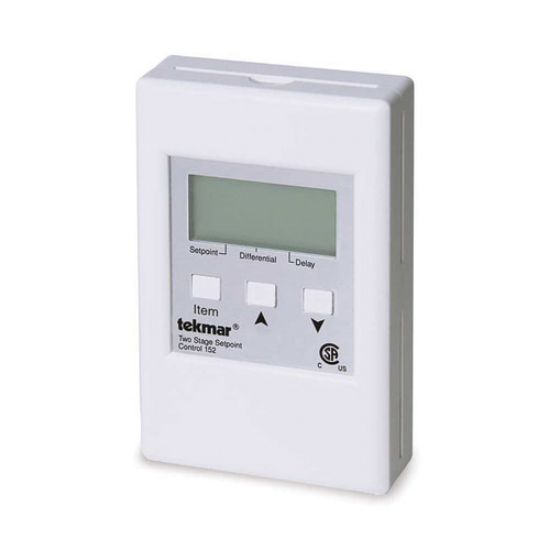

152 TWO STAGE SETPOINT CONTROL

Tekmar 152 WhPVC Plastic 2-Stage Setpoint Control, -85 to 302F Display, -40 to 239F Set Point, 24 VAC/VDC, 50/60Hz, 2-7/8 in. L x 7/8 in. W x 4-3/4 in. H

Manufacturer: Tekmar Control Systems

$0.00

Qty:

2-Stage Setpoint Control, 2-7/8 in. Length, 7/8 in. Width, 4-3/4 in. Height, Material: PVC Plastic, AMP: 0.03A, 24 VAC/VDC Volts, Colour/Finish Name: White, Environmental Conditions: Less Than or Equal to 90% RH Non-Condensing, Temperature Rating: -20 to 120F Ambient, -85 to 302F display, -40 to 239F Set point 1 and 2, 1 - 40F Differential 1 and 2, 3 - 40F Differential 1 and 2, Sensing Element: NTC Thermistor, Enclosure Rating: NEMA 1, 50/60Hz Frequency Rating, 3 VA Power Consumption

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	2-7/8 in.
Width	7/8 in.
Height	4-3/4 in.
Material	PVC Plastic
AMP	0.03A
Colour/Finish Name	White
Enclosure Rating	NEMA 1
Environmental Conditions	Less Than or Equal to 90% RH Non-Condensing
Frequency Rating	50/60Hz
Power Consumption	3 VA
Temperature Rating	-20 to 120F Ambient, -85 to 302F display, -40 to 239F Set point 1 and 2, 1 - 40F Differential 1 and 2, 3 - 40F Differential 1 and 2
Volts	24 VAC/VDC
