403 ZONE CONTROL MIXING 403 (PUMP)

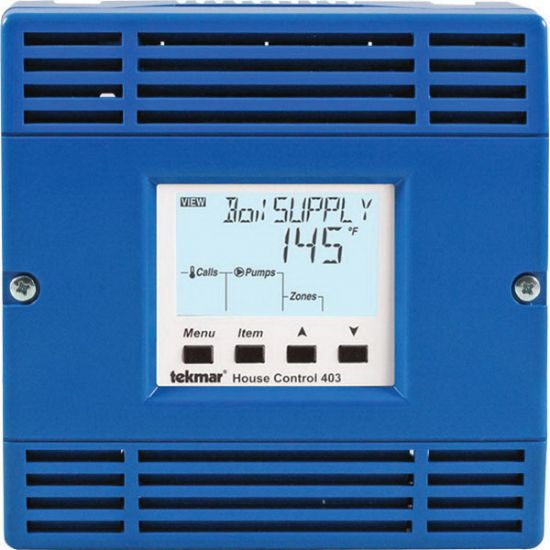

Tekmar tekmarNet 2 403 4 Zone House Control, 24 VAC
tekmarNet 2 House Control, 5-1/2 in. Width, 5-1/2 in. Height, Material: PC+ABS Enclosure, (4) On-Board Zone Pumps and can Expandable up to 48-Zones Zones, Depth: 2-1/4 in., Colour/Finish Name: Blue, NEMA 1 Enclosure, 32 - 104F Ambient Temperature, Pump Power: 115 VAC, 12A Max, Power Supply: 24 VAC Plus or Minus 10%, 60Hz, 100 VA Max, Class 2, Pump Relay: 115 VAC, 5A, 1/6 hp, 2 VA Power Consumption, Boiler Relay Rating: 24 VAC, 5A, Sensor Type: NTC Thermistor, 10 kOhm at 77F, 3892 ß, Floating Action Load: 89 VA, 24 VAC, 3.7A, Setpoint and DHW Calls: Short, 0 - 32 VAC, Boiler Modulation Output: 0 - 10 VDC 500 Ohm Min Load Impedance, 4 - 20mA 1 kOhm Max Load Impedance
