406 TN2 HOUSE CNTRL(HEAT PUMP & 1B, 4ZV)

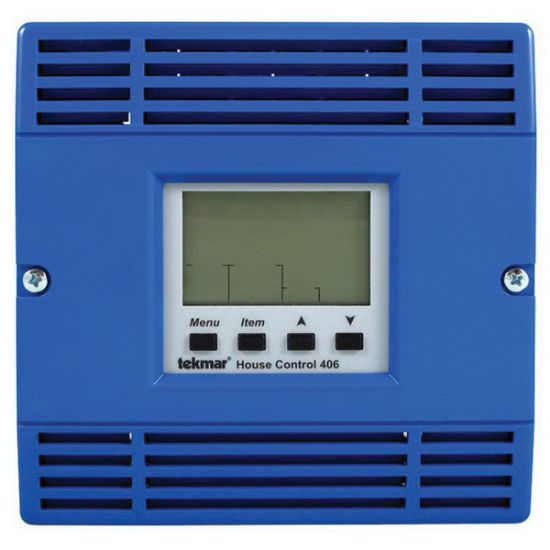

Tekmar tekmarNet 2 406 4 Zone House Control, 24 VAC

Manufacturer: Tekmar Control Systems

$0.00

Qty:

tekmarNet 2 House Control, 5-1/2 in. Width, 5-1/2 in. Height, Material: PC+ABS Enclosure, (4) On-Board Heating and Cooling Zones and is Expandable up to 52-Zones Zones, Depth: 2-1/4 in., Colour/Finish Name: Blue, NEMA 1 Enclosure, 32 - 104F Ambient Temperature, Pump Power: 115 VAC, 12A Max, Power Supply: 24 VAC Plus or Minus 10%, 60Hz, 100 VA Max, Class 2, Pump Relay: 115 VAC, 5A, 1/6 hp, 2 VA Power Consumption, Boiler Relay Rating: 24 VAC, 3.7A Combined, (Y2) 24 VAC at 5A Backup, Sensor Type: NTC Thermistor, 10 kOhm at 77F, 3892 ß

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	5-1/2 in.
Height	5-1/2 in.
Material	PC+ABS Enclosure
Ambient Temperature Rating	32 - 104F
Colour/Finish Name	Blue
Depth	2-1/4 in.
Enclosure	NEMA 1
Power Consumption	2 VA
Sensor Type	NTC Thermistor, 10 kOhm at 77F, 3892 ß
Zones	(4) On-Board Heating and Cooling Zones and is Expandable up to 52-Zones
