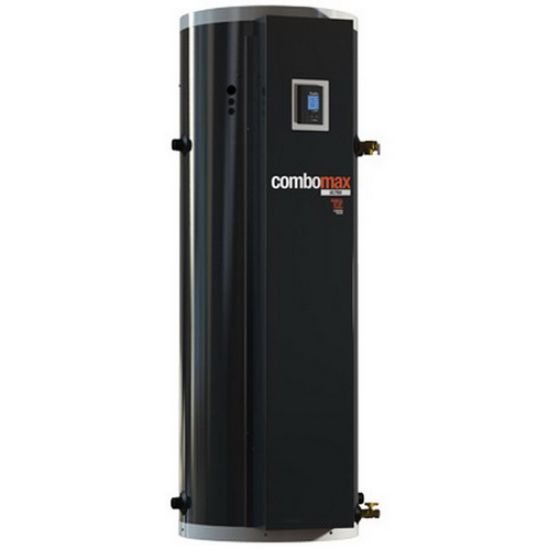

COMBOMAX 20KW 50G 240V ELECT BOILER

Thermo 2000 COMBOU50-20 4-Element 4-Stage Combination Electric Boiler and Water Heater, 48 gal, 240 VAC at 60Hz, 1 PH, 83A, 20kW

Manufacturer: Thermo 2000

$0.00

Qty:

Combination Electric Boiler and Water Heater, Combomax Ultra 50 Series, 60 in. Height, AMP: 83A, 68240 btu/hr BTU, 48 gal Capacity, 1 in. MNPT Return Pipe, Supply Pipe Connection Size: 1 in. MNPT, 240 VAC Volts, 20kW Watts, 60Hz Frequency Rating, Phase: 1 PH, Number of Elements: 4, Temperature Rating: 40F Domestic Cold Water Supply, 180F Boiler Water, Stages: 4, Pressure - Maximum: 30 psi Operating, 125 psi Domestic Hot Water, Diameter: 22 in.

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	60 po
AMP	83A
BTU	68240 btu/hr
Capacity	48 gal
Diameter	22 in.
Frequency Rating	60Hz
Number of Elements	4
Phase	1 PH
Pressure - Maximum	30 psi Operating, 125 psi Domestic Hot Water
Return Pipe Connection	1 in. MNPT
Stages	4
Supply Pipe Connection Size	1 in. MNPT
Temperature Rating	40F Domestic Cold Water Supply, 180F Boiler Water
Volts	240 VAC
Watts	20kW
