TYCC910485

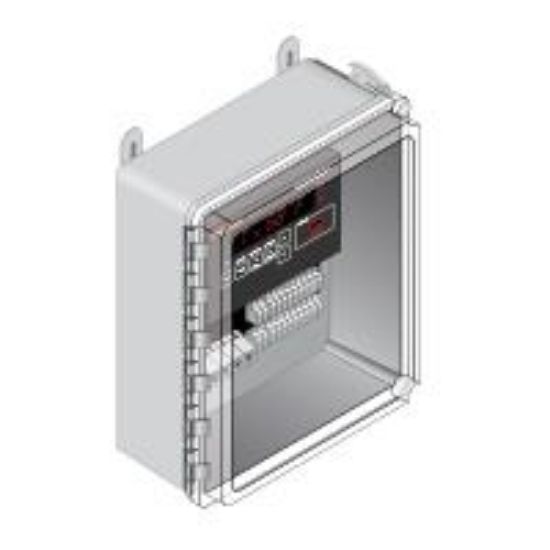

Digitrace Single Point Heat Tracing Control System, Material: Fibreglass Reinforced Plastic, AMP: 30A at 104F Derated to 20A at 140F, 100 - 277 VAC Volts, Control Range: 0 - 200F, Electrical Connection: Screw Terminal, 22-8 awg Power Supply Input/Heating Cable Output, Mounting Type: Surface, 50/60Hz Frequency Rating, Temperature Range: -40 to 140F Operating, -40 to 185F Storage, Operating Humidity: 0 - 90% Non-Condensing, Monitoring Temperature: 0 - 180F Low Alarm Range, 0 - 200F High Alarm Range, Monitoring Ground Fault Range: 20 - 100 mA Alarm and Trip, Monitoring Current: 0.3 - 30A or OFF, 15 lbs. Weight, Ground Connection: Two Box Lugs, 14-6 awg, RTD/Alarm/Communications: 28 - 12 awg Spring Clamp Terminals, Communication Protocol: ModBus RTU/ASCI I, Communication Topology: Multidrop, Daisy Chain, Single Shielded Twisted Pair, 26 awg or Larger Cable, Communication Length: 4000 ft. Maximum at 9600 Baud, Relay Type: Double-Pole, Mechanical
