005H 6 COUPLING E GASK GLV

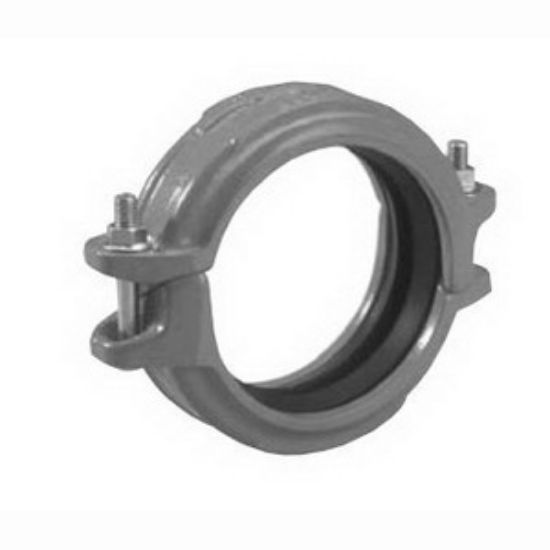

Victaulic FireLock 005 Hot Dipped Galvanized Ductile Iron Rigid Coupling with Grade E Gasket, 6 in., Grooved

Manufacturer: Victaulic

$0.00

Qty:

FireLock Rigid Coupling with Grade E Gasket, Model: 005, 10 in. Length, 2.13 in. Width, Ductile Iron, Coating: Hot Dipped Galvanized, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 6 in., Fitting Size 2: 6 in., Pressure - Maximum: 300 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Other Physical Dimensions: (2) 1/2 x 2-3/4 in. Bolt/Nut, 0.16 in. Allowable Pipe End Separation, 8 in. Body Outside Diameter, 6-5/8 in. Diameter - Outside 1, 10340 lbs. Maximum End Load, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10 in.
Width	2.13 in.
Material	Ductile Iron
Coating	Hot Dipped Galvanized
Diameter - Outside 1	6-5/8 in.
End Connection 1	Grooved
End Connection 2	Grooved
End Load	10340 lbs. Maximum
Fitting Size 1	6 in.
Fitting Size 2	6 in.
Pressure - Maximum	300 psi
