009N 4" EZ RIGID COUPLING GALV

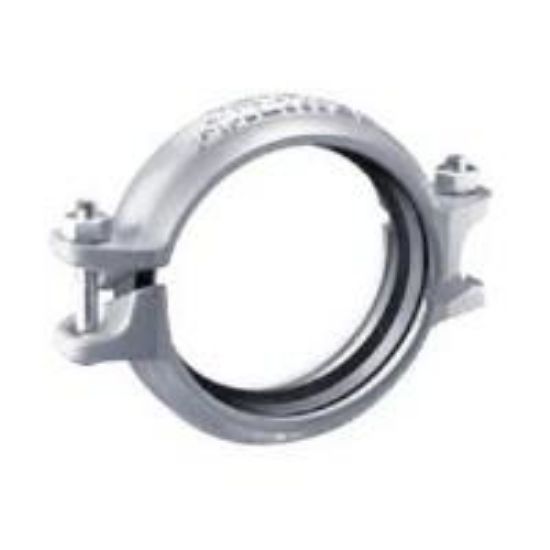

Victaulic FireLock EZ 009N Hot-Dipped Galvanized Ductile Iron Preassembled Rigid Coupling with Grade E Gasket, 4 in., Grooved

Manufacturer: Victaulic

$0.00

Qty:

FireLock EZ Preassembled Rigid Coupling with Grade E Gasket, Model: 009N, 7.88 in. Length, 2.13 in. Width, Ductile Iron, Coating: Hot-Dipped Galvanized, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 4 in., Fitting Size 2: 4 in., Pressure - Maximum: 365 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-563 Grade B, ASTM B-633, Other Physical Dimensions: (2) 3/8 x 2-1/2 in. Bolt/Nut, 0.17 in. Allowable Pipe End Separation, 6 in. Body Outside Diameter, Diameter - Outside 1: 4-1/2 in., 5805 lbs. Maximum End Load, Domestic Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7.88 in.
Width	2.13 in.
Material	Ductile Iron
Coating	Hot-Dipped Galvanized
Diameter - Outside 1	4-1/2 in.
End Connection 1	Grooved
End Connection 2	Grooved
End Load	5805 lbs. Maximum
Fitting Size 1	4 in.
Fitting Size 2	4 in.
Pressure - Maximum	365 psi
