07 2-1/2 COUPLING E GASK GLV

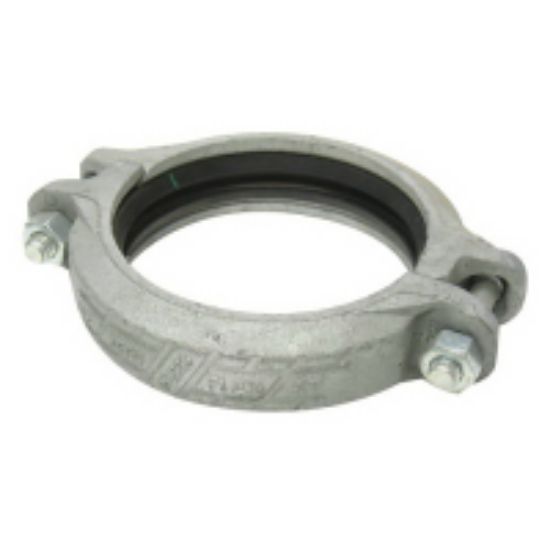

Victaulic Style 07 Zero-Flex Rigid Coupling 2 1/2 in., Galvanized, E-EPDM, Oval Neck Track B/N - Plated

Manufacturer: Victaulic

$0.00

Qty:

Zero-Flex Rigid Coupling with Grade E Gasket, Model: 07, 6.38 in. Length, 1.84 in. Width, Ductile Iron, Coating: Hot Dipped Galvanized, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 2-1/2 in., Fitting Size 2: 2-1/2 in., Pressure - Maximum: 750 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM B-633, Other Physical Dimensions: (2) 1/2 x 2-3/4 in. Bolt/Nut, 0.07 in. Allowable Pipe End Separation, 3.88 in. Body Outside Diameter, 2-7/8 in. Diameter - Outside 1, 4875 lbs. Maximum End Load, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6.38 in.
Width	1.84 in.
Material	Ductile Iron
Coating	Hot Dipped Galvanized
End Connection 1	Grooved
End Connection 2	Grooved
End Load	4875 lbs. Maximum
Fitting Size 1	2 1/2 in.
Pressure - Maximum	750 psi
