103 2X45 IR ELBOW E GASK PNT

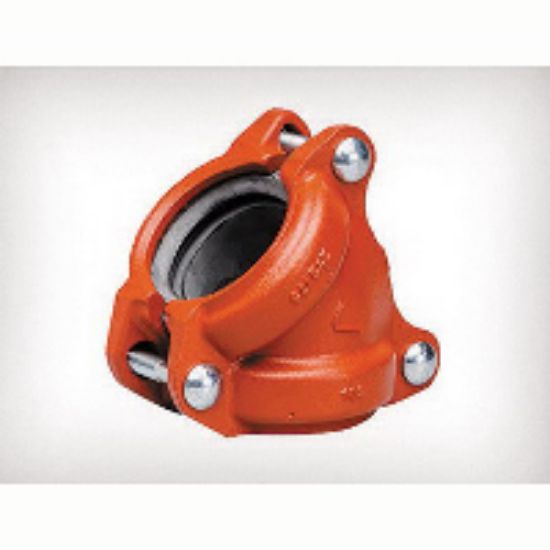

Victaulic FireLock Installation-Ready 103 Orange Enamel Ductile Iron 45 Degree Elbow with Grade E Gasket, 2 in., Grooved

Manufacturer: Victaulic

$0.00

Qty:

FireLock Installation-Ready Elbow with Grade E Gasket, Model: 103, 3.63 in. Width, 5 in. Height, Ductile Iron, 45 Degree Angle, Coating: Orange Enamel, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 2 in., Fitting Size 2: 2 in., Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-563 Grade B, Pressure - Maximum: 365 psi, Other Physical Dimensions: (3) 7/16 x 2-3/4 in. Bolt, 2 in. Centre to End, 2-3/8 in. Diameter - Outside 1, Specifications - UL Listed: Yes, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	3.63 in.
Height	5 po
Material	Ductile Iron
Angle	45 Degree
Coating	Orange Enamel
Diameter - Outside 1	2-3/8 in.
End Connection 1	Grooved
End Connection 2	Grooved
Fitting Size 1	2 in.
Fitting Size 2	2 in.
Pressure - Maximum	365 psi
Specifications - UL Listed	Yes
