107H 4 COUPLING EHP GASK GLV

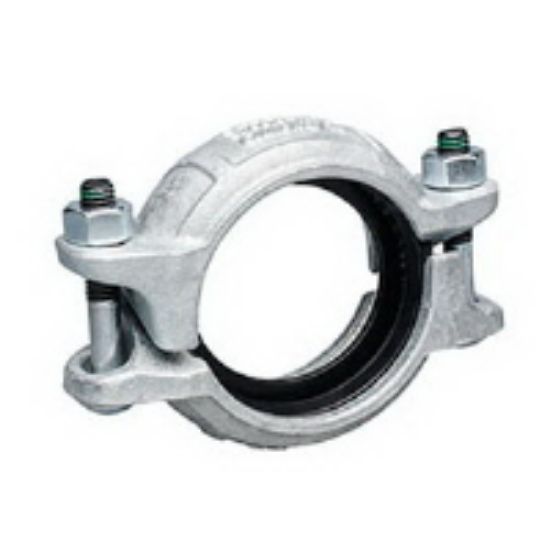

Victaulic QuickVic 107H Hot Dipped Galvanized Ductile Iron Pre-Assembled Rigid Coupling with Grade E Gasket, 4 in., Grooved

Manufacturer: Victaulic

$0.00

Qty:

QuickVic Pre-Assembled Rigid Coupling with Grade E Gasket, Model: 107H, 8.39 in. Length, 2.04 in. Width, Ductile Iron, Coating: Hot Dipped Galvanized, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 4 in., Fitting Size 2: 4 in., Pressure - Maximum: 750 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Other Physical Dimensions: (2) 1/2 x 3 in. Bolt/Nut, 0.15 in. Allowable Pipe End Separation, 5.97 in. Body Outside Diameter, 4-1/2 in. Diameter - Outside 1, 11928 lbs. Maximum End Load, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	8.39 in.
Width	2.04 in.
Material	Ductile Iron
Coating	Hot Dipped Galvanized
Diameter - Outside 1	4-1/2 in.
End Connection 1	Grooved
End Connection 2	Grooved
End Load	11928 lbs. Maximum
Fitting Size 1	4 in.
Fitting Size 2	4 in.
Pressure - Maximum	750 psi
