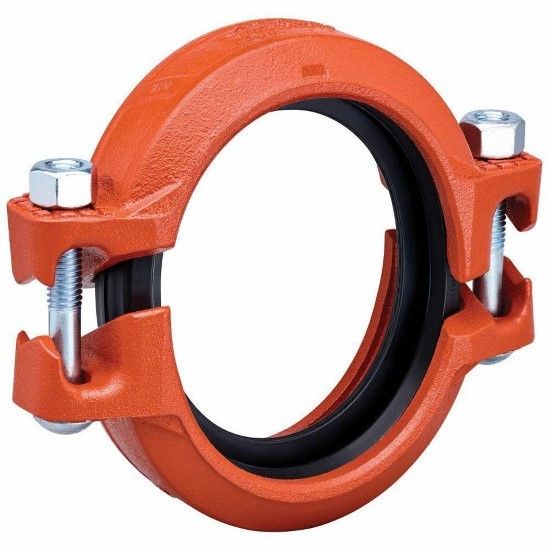

Picture of 107V 2-1/2 RIGID COUPLING EHP GASK PNT

107V 2-1/2 RIGID COUPLING EHP GASK PNT

Victaulic C024107PE0 2-1/2 in. Ductile Iron Rigid Coupling With Grade E Gasket
Manufacturer: Victaulic
$0.00
This Style 107V straight coupling is made of ductile iron and comes in an orange enamel coating. It has a 2-1/2 inch Grooved end connection, 2-7/8 inches outside diameter, a 750 PSI operating pressure, an operating temperature ranging from -30 to 230 degrees Fahrenheit, an end load of 4869 lbs and measures 6-3/4 inches length x 2-3/8 inches width. The coupling is UL-listed and meets the ASTM A536 Grade 65-45-12 and NSF 61 standards. It features a red/green striped EPDM gasket and weighs 3.3 lb.
Products specifications
products.specs.attributename products.specs.attributevalue
Material Ductile Iron
Product Type Ductile Iron Couplings
Colour/Finish Category Oranges
End Connection 1 Grooved
Fitting Size 2 2-1/2 in.
Specifications - ASTM ASTM A-123;ASTM A-449;ASTM A-536 Grade 65-45-12;ASTM A-563 Grade B;ASTM A-563M Class 9;ASTM B-633
Diameter - Outside 2-7/8 in.
Fitting Sizes 2-1/2 in. x 2-1/2 in.
Pressure - Maximum 750 psi
End Connection 2 Grooved
End Connection Grooved
Specifications - AWWA AWWA C-606
Length 6-3/4 in.
Application Carbon Steel Pipe;Stainless Steel Pipe
Style Name Style 107N
Specifications - ASME ASME B31.1;ASME B31.9
Specifications - UL Listed Yes
Origin Domestic
Specifications - ISO ISO 4200;ISO 898-1
Coating Galvanized;Orange Enamel;Painted
Specifications - ANSI ANSI B63.10
Specifications - NSF NSF 372;NSF 61
Specifications - NSF Certified Yes
Weight 3.00 lb
Colour/Finish Name Orange
Temperature Range -30 to 250 Deg F
Material Type EPDM
Fitting Size 1 2-1/2 in.
Specifications - FM Approved Yes
