Picture of 107V 6 RIGID COUPLING EHP GASK PNT

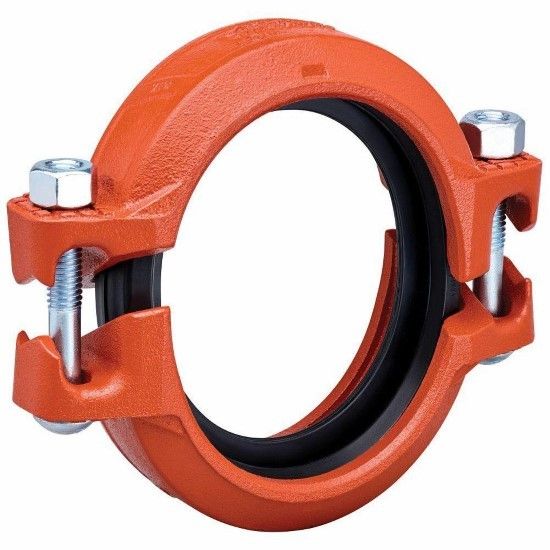

107V 6 RIGID COUPLING EHP GASK PNT

Victaulic C060107PE0 6 in. Ductile Iron Rigid Coupling With Grade E Gasket
Manufacturer: Victaulic
$0.00
This Style 107V straight coupling is made of ductile iron and comes in an orange enamel coating. It has a 6 inch Grooved end connection, 6-5/8 inches outside diameter, a 700 PSI operating pressure, an operating temperature ranging from -30 to 230 degrees Fahrenheit, an end load of 24130 lbs and measures 11-1/4 inches length x 2-3/8 inches width. The coupling is UL-listed and meets the ASTM A536 Grade 65-45-12 and NSF 61 standards. It features a red/green striped EPDM gasket and weighs 8.1 lb.
Products specifications
products.specs.attributename products.specs.attributevalue
Material Ductile Iron
Product Type Ductile Iron Couplings
Style Name Style 107N
End Connection Grooved
Specifications - ISO ISO 4200;ISO 898-1
Coating Galvanized;Orange Enamel;Painted
Colour/Finish Name Orange
Specifications - UL Listed Yes
Diameter - Outside 3-1/2 in.
End Connection 2 Grooved
Specifications - ANSI ANSI B63.10
Fitting Size 2 3 in.
Specifications - FM Approved Yes
Specifications - NSF NSF 372;NSF 61
Colour/Finish Category Oranges
Pressure - Maximum 750 psi
Specifications - AWWA AWWA C-606
Fitting Size 1 3 in.
Application Carbon Steel Pipe;Stainless Steel Pipe
Length 7-1/2 in.
Specifications - ASME ASME B31.1;ASME B31.9
Fitting Sizes 3 in. x 3 in.
Specifications - ASTM ASTM A-395 Grade 65-45-15;ASTM A-536 Grade 65-45-12
Specifications - NSF Certified Yes
Temperature Range -30 to 250 Deg F
Material Type EPDM
Origin Domestic
Weight 3.70 lb
End Connection 1 Grooved
