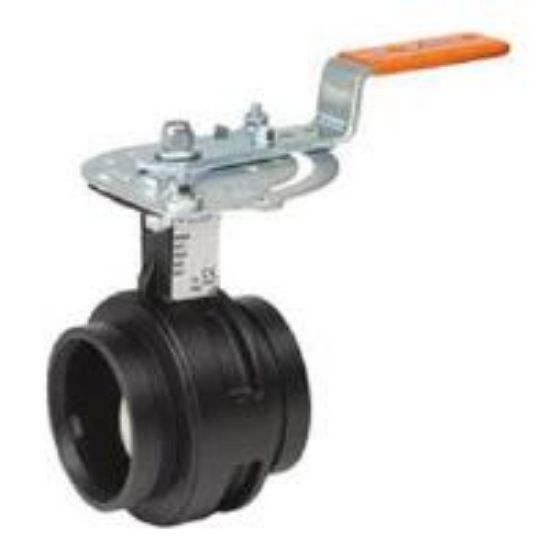

Victaulic Vic-300 MasterSeal V030761SE2 Black Alkyd Enamel Coated Ductile Iron 10-Position Memory Stop Handle Butterfly Valve, 3 in., Grooved

Manufacturer: Victaulic

$0.00

Qty:

Vic-300 MasterSeal Butterfly Valve, 761 Series, 3.77 in. Width, Ductile Iron, End Connection 1: Grooved, End Connection 2: Grooved, Pressure - Maximum: 300 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM B-733, ASTM A-582, Specifications - ISO: ISO 5211, Specifications - MSS: MSS SP-67, Valve Body Style: Grooved, Ductile Iron with Electroless Nickel Coated Valve Disc, Valve Operator: 10-Position Handle with Memory Stop, EPDM Valve Seat, Valve Size: 3 in., EPDM Stem Valve Seal, Dimension: 3-1/2 in. Actual Outside Diameter, 440 (Full Open) Flow Co-Efficient (Cv), Coating: Black Alkyd Enamel, 416 Stainless Steel Valve Stem

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	3.77 in.
Material	Ductile Iron
Coating	Black Alkyd Enamel
Dimension	3-1/2 in. Actual Outside Diameter
End Connection 1	Grooved
End Connection 2	Grooved
Flow Co-Efficient (Cv)	440 (Full Open)
Pressure - Maximum	300 psi
Specifications - ISO	ISO 5211
Specifications - MSS	MSS SP-67
Valve Body Style	Grooved
Valve Disc Material	Ductile Iron with Electroless Nickel Coated
Valve Operator	10-Position Handle with Memory Stop
Valve Seal Material	EPDM Stem
Valve Seat Material	EPDM
Valve Size	3 in.
Valve Stem Material	416 Stainless Steel
