341M 4 ADAPT VIC-FLANGE GASKET M VICT.

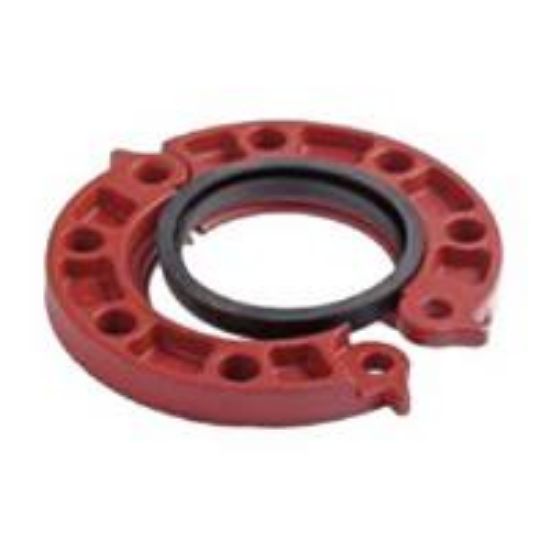

Victaulic Vic-Flange 341 Alkyd-Phenolic Primer Ductile Iron AWWA Flange Adapter with Grade M Gasket, 4 in., 9 in. Flange OD

Manufacturer: Victaulic

$0.00

Qty:

Vic-Flange AWWA Flange Adapter with Grade M Gasket, Model: 341, Ductile Iron, Coating: Alkyd-Phenolic Primer, Fitting Size 1: 4 in., Specifications - ASTM: ASTM A-536 Grade 65-45-12, Pressure - Maximum: 250 psi, Other Physical Dimensions: 3 in. Bolt Length, 4.8 - 5.88 in. Sealing Surface, 4500 lbs. Maximum End Load, Domestic Origin, 9 in. Flange Outside Diameter, 0.94 in. Flange Thickness, 4.8 in. Nominal Bore, 7-1/2 in. Bolt Circle Diameter, Number of Bolts: 8, 5/8 in. Bolt Hole Diameter

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Bolt Circle Diameter	7-1/2 in.
Bolt Hole Diameter	5/8 in.
Coating	Alkyd-Phenolic Primer
End Load	4500 lbs. Maximum
Fitting Size 1	4 in.
Flange Outside Diameter	9 in.
Flange Thickness	0.94 in.
Nominal Bore Size	4.8 in.
Number of Bolts	8
Pressure - Maximum	250 psi
