641 2-1/2 FLANGE ADAPT E GASK

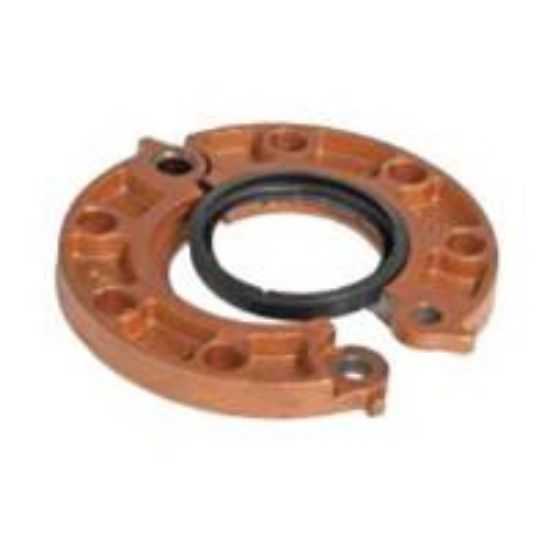

Victaulic Style 641 Vic-Flange Flange Adapter for Copper 2 1/2 in., Painted, E-EPDM

Manufacturer: Victaulic

$0.00

Qty:

Vic-Flange Flange Adapter with Grade E Gasket, Model: 641, Ductile Iron, Coating: Copper Coloured Alkyd Enamel, Fitting Size 1: 2-1/2 in., Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-395 Gade 65-45-15, Pressure - Maximum: 300 psi, Other Physical Dimensions: 3 in. Bolt Length, 2.63 - 3.91 in. Sealing Surface, Global Origin, 7 in. Flange Outside Diameter, 0.88 in. Flange Thickness, 5-1/2 in. Bolt Circle Diameter, Number of Bolts: 4, 5/8 in. Bolt Hole Diameter

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Bolt Circle Diameter	5-1/2 in.
Bolt Hole Diameter	5/8 in.
Coating	Copper Coloured Alkyd Enamel
Fitting Size 1	2 1/2 in.
Flange Outside Diameter	7 in.
Flange Thickness	0.88 in.
Number of Bolts	4
Pressure - Maximum	300 psi
