700 2 BTRFLY VLV E GASK W/BZ DISC & LL

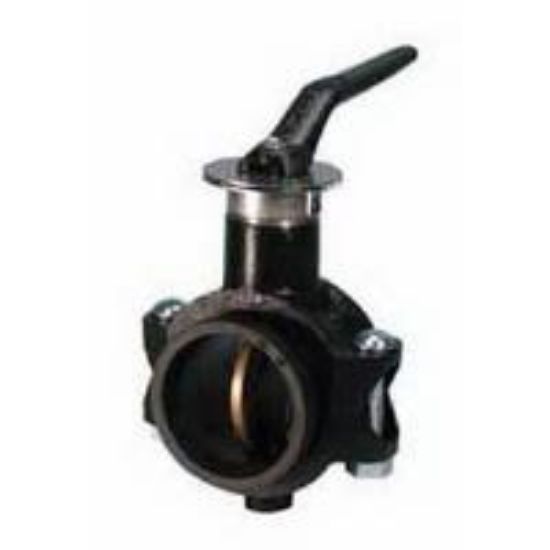

Victaulic Series 700 Butterfly Valve 2 in., Aluminum Bronze, E-EPDM, 2 Position Cast Handle with Lockout Feature

Manufacturer: Victaulic

$0.00

Qty:

Butterfly Valve, 700 Series, 4.06 in. Length, 3.19 in. Width, 6.58 in. Height, Carbon Steel with Elastomer Lined, End Connection 1: Grooved, End Connection 2: Grooved, Maximum Temperature: -30 to 230F, Pressure - Maximum: 200 psi, Valve Body Style: Grooved, Aluminum Bronze Valve Disc, Valve Operator: Lever Lock Handle, Standard Port Valve Port Opening, EPDM Valve Seat, Valve Size: 2 in., EPDM O-Ring Valve Seal, Dimension: 2-3/8 in. Actual Outside Diameter, 4.71 in. Centre to Top of the Handle, 70 Flow Co-Efficient (Cv), Coating: Painted Black

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4.06 in.
Width	3.19 in.
Height	6.58 in.
Material	Carbon Steel with Elastomer Lined
Coating	Painted Black
Dimension	2-3/8 in. Actual Outside Diameter, 4.71 in. Centre to Top of the Handle
End Connection 1	Grooved
End Connection 2	Grooved
Flow Co-Efficient (Cv)	70
Maximum Temperature	-30 to 230F
Pressure - Maximum	200 psi
Valve Body Style	Grooved
Valve Disc Material	Aluminum Bronze
Valve Operator	Lever Lock Handle
Valve Port Opening	Standard Port
Valve Seal Material	EPDM O-Ring
Valve Seat Material	EPDM
Valve Size	2 in.
Fitting Size 1	2 in.
