700 3 BTRFLY VLV E GASK W/BZ DISC & LL

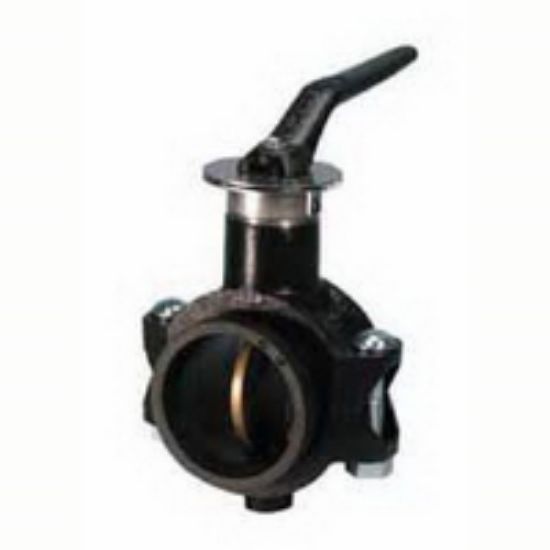

Victaulic Series 700 Butterfly Valve 3 in., Aluminum Bronze, E-EPDM, 2 Position Cast Handle with Lockout Feature

Manufacturer: Victaulic

$0.00

Qty:

Butterfly Valve, 700 Series, 3.81 in. Length, 8.37 in. Height, Carbon Steel with Elastomer Lined, End Connection 1: Grooved, End Connection 2: Grooved, -30 to 230F Maximum - Temperature, Pressure - Maximum: 200 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, Valve Body Style: Grooved, Aluminum Bronze Valve Disc, Valve Operator: Lever Lock Handle, EPDM Valve Seat, Valve Size: 3 in., EPDM O-Ring Valve Seal, Dimension: 3-1/2 in. Actual Outside Diameter, 180 (Degrees Open) Flow Co-Efficient (Cv), Coating: Painted Black, 416 Stainless Steel Valve Stem

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	3.81 in.
Height	8.37 in.
Material	Carbon Steel with Elastomer Lined
Coating	Painted Black
Dimension	3-1/2 in. Actual Outside Diameter
End Connection 1	Grooved
End Connection 2	Grooved
Flow Co-Efficient (Cv)	180 (Degrees Open)
Maximum Temperature	-30 to 230F
Pressure - Maximum	200 psi
Valve Body Style	Grooved
Valve Disc Material	Aluminum Bronze
Valve Operator	Lever Lock Handle
Valve Seal Material	EPDM O-Ring
Valve Seat Material	EPDM
Valve Size	3 in.
Valve Stem Material	416 Stainless Steel
Fitting Size 1	3 in.
