707C 6 BTRFLY VLV SUPERVISED CLOSED

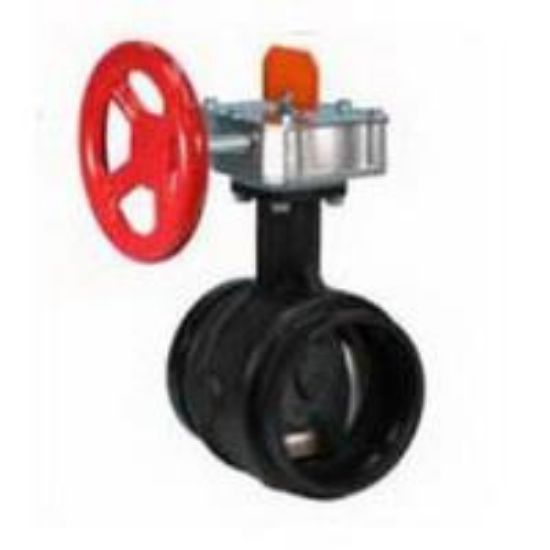

Victaulic FireLock V060707900 Black Alkyd Enamel Coated Ductile Iron Supervised Closed Butterfly Valve with Weatherproof Actuator, 6 in., Grooved

$0.00

Qty:

FireLock Supervised Closed Butterfly Valve with Weatherproof Actuator, 707C Series, 5.88 in. Width, Ductile Iron, End Connection 1: Grooved, End Connection 2: Grooved, Pressure - Maximum: 300 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM B-733, ASTM A-582, Valve Body Style: Grooved, Ductile Iron with Electroless Nickel Coated Valve Disc, EPDM Valve Seat, Valve Size: 6 in., EPDM Stem Valve Seal, Dimension: 6-5/8 in. Actual Outside Diameter, 1800 (Full Open) Flow Co-Efficient (Cv), Coating: Black Alkyd Enamel, 416 Stainless Steel Valve Stem

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	5.88 in.
Material	Ductile Iron
Coating	Black Alkyd Enamel
Dimension	6-5/8 in. Actual Outside Diameter
End Connection 1	Grooved
End Connection 2	Grooved
Flow Co-Efficient (Cv)	1800 (Full Open)
Pressure - Maximum	300 psi
Valve Body Style	Grooved
Valve Disc Material	Ductile Iron with Electroless Nickel Coated
Valve Seal Material	EPDM Stem
Valve Seat Material	EPDM
Valve Size	6 in.
Valve Stem Material	416 Stainless Steel
