720 2 NPT ALARM TEST MODULE

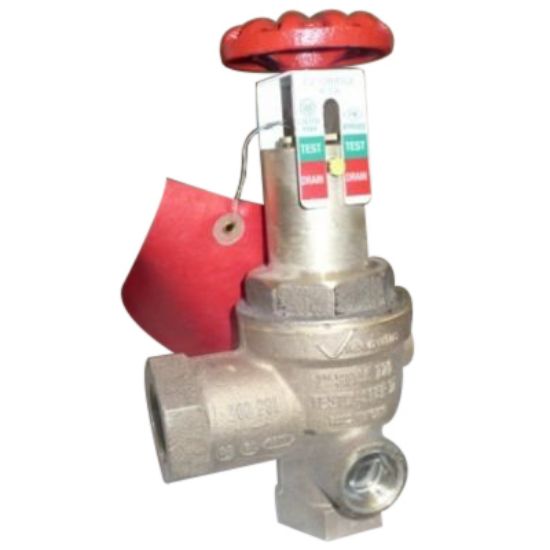

Victaulic TestMaster II V020720SF0 Bronze Alarm Test Module, 2 in., FNPT

$0.00

Qty:

TestMaster II Alarm Test Module, 720 Series, 3-3/4 in. Width, Bronze, End Connection 1: FNPT, Pressure - Maximum: 300 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, End Connection 2: FNPT, Valve Operator: Hand Wheel, EPDM Valve Seat, Valve Size: 2 in., Malleable Iron Handle, Dimension: 6.51 in. Inlet x 5.47 in. Closed Centre to Top of Handle, 2.68 in. Handle Diameter, 2-3/8 in. Actual Outside Diameter, Nitrile O-Ring Valve Seal, 1/2 in. Orifice Size

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	3-3/4 in.
Material	Bronze
Dimension	6.51 in. Inlet x 5.47 in. Closed Centre to Top of Handle, 2.68 in. Handle Diameter, 2-3/8 in. Actual Outside Diameter
End Connection 1	FNPT
End Connection 2	FNPT
Handle Material	Malleable Iron
Orifice Size	1/2 in.
Pressure - Maximum	300 psi
Specifications - FM Approved	Yes
Specifications - UL Listed	Yes
Valve Operator	Hand Wheel
Valve Seal Material	Nitrile O-Ring
Valve Seat Material	EPDM
Valve Size	2 in.
