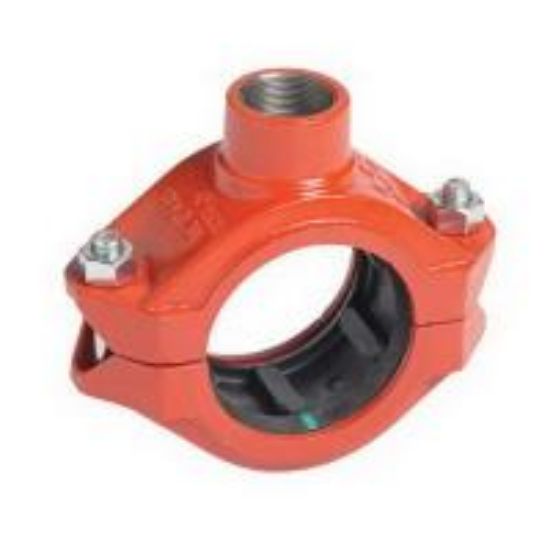

72 3X3/4 FNPT COUPLING E GASK PNT

Victaulic Style 72 Female Outlet Coupling 3 x 3/4 in., Painted, E-EPDM, Oval Neck Track B/N - Plated

Manufacturer: Victaulic

$0.00

Qty:

Outlet Coupling with Grade E Gasket, Model: 72, 7 in. Length, 2.38 in. Width, Ductile Iron, Coating: Orange Enamel, End Connection 1: Grooved, End Connection 2: FNPT, Fitting Size 1: 3 in., Fitting Size 2: 3/4 in., Pressure - Maximum: 500 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Other Physical Dimensions: 2-3/4 in. Centre of Run to End, 3.31 in. Centre of Run to The Engaged Pipe End, 1/2 - 0.63 in. Allowable Pipe End Separation, (2) 1/2 x 2-1/2 in. Bolt, 4-1/2 in. Body Outside Diameter, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7 in.
Width	2.38 in.
Material	Ductile Iron
Coating	Orange Enamel
End Connection 1	Grooved
End Connection 2	FNPT
Fitting Size 1	3 in. x 3/4 in.
Pressure - Maximum	500 psi
