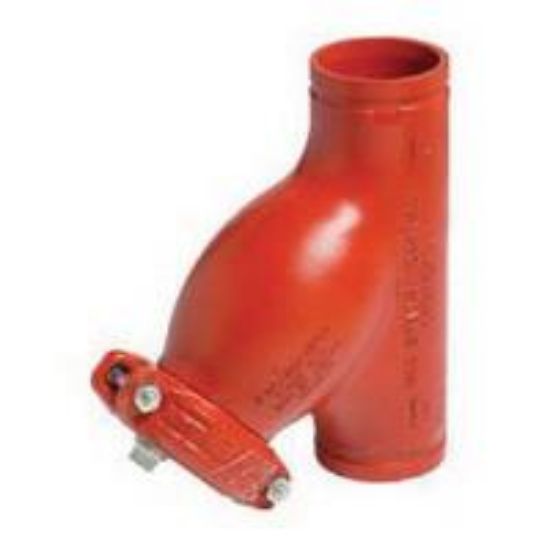

732 2-1/2 WYE STRAINER E GASK PNT

Victaulic Series 732 Vic-Strainer 2 1/2 in., Painted, E-EPDM

Manufacturer: Victaulic

$0.00

Qty:

Y Strainer, Model: 732, 10-3/4 in. Length, Ductile Iron, End Connection 1: Grooved, Fitting Size 1: 2-1/2 in., Pressure - Maximum: 300 psi, Specifications - ASTM: ASTM A-395 Grade 65-45-15, ASTM A-536 Grade 65-45-12, Colour/Finish Name: Orange Enamel Coating, Dimension: 2-5/8 in. Actual Outer Diameter, 8.32 in. Inlet Centre to Cap End, Maximum Temperature: -30 to 230F, Recommended Valve Application: Water, Specifications - NSF: NSF 61, Specifications - NSF Certified: Yes, 111 (Full Open) Flow Co-Efficient (Cv), 0.062 in. Perforation Size

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10-3/4 in.
Material	Ductile Iron
Colour/Finish Name	Orange Enamel Coating
Dimension	2-5/8 in. Actual Outer Diameter, 8.32 in. Inlet Centre to Cap End
End Connection 1	Grooved
Fitting Size 1	2 1/2 in.
Flow Co-Efficient (Cv)	111 (Full Open)
Maximum Temperature	-30 to 230F
Perforation Size	0.062 in.
Pressure - Maximum	300 psi
Recommended Valve Application	Water
Specifications - NSF	NSF 61
Specifications - NSF Certified	Yes
