750 2X1-1/2 RED COUPLING E GASK GLV

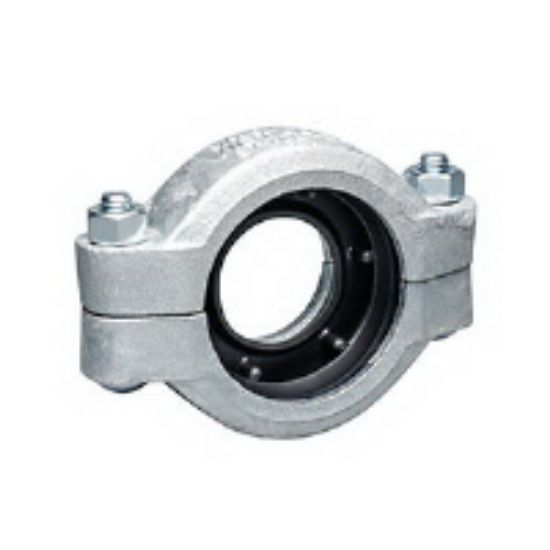

Victaulic 750 Hot Dipped Galvanized Ductile Iron Reducing Coupling with Grade E Gasket, 2 x 1-1/2 in., Grooved

Manufacturer: Victaulic

$0.00

Qty:

Reducing Coupling with Grade E Gasket, Model: 750, 5.28 in. Length, 1.88 in. Width, Ductile Iron, Coating: Hot Dipped Galvanized, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 2 in., Fitting Size 2: 1-1/2 in., Pressure - Maximum: 350 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Other Physical Dimensions: (2) 3/8 x 2 in. Bolt/Nut, 0.07 in. Allowable Pipe End Separation, 3.38 in. Body Outside Diameter, 1000 lbs. Maximum End Load, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5.28 in.
Width	1.88 in.
Material	Ductile Iron
Coating	Hot Dipped Galvanized
End Connection 1	Grooved
End Connection 2	Grooved
End Load	1000 lbs. Maximum
Fitting Size 1	2 in.
Fitting Size 2	1-1/2 in.
Pressure - Maximum	350 psi
