75 5 COUPLING E GASK PNT

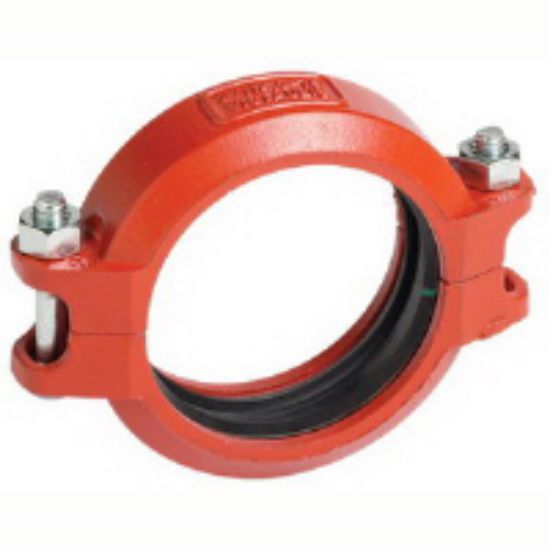

Victaulic Style 75 Light Weight Flexible Coupling 5 in., Painted, E-EPDM, Oval Neck Track B/N - Plated

Manufacturer: Victaulic

$0.00

Qty:

Flexible Coupling with Grade E Gasket, Model: 75, 10.07 in. Length, 2.13 in. Width, Ductile Iron, Coating: Orange Enamel, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 5 in., Fitting Size 2: 5 in., Pressure - Maximum: 450 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Other Physical Dimensions: (2) 5/8 x 3-1/4 in. Bolt/Nut, 0.13 in. Allowable Pipe End Separation, 6.88 in. Body Outside Diameter, 5.563 in. Diameter - Outside 1, 10935 lbs. Maximum End Load, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	10.07 in.
Width	2.13 in.
Material	Ductile Iron
Coating	Orange Enamel
End Connection 1	Grooved
End Connection 2	Grooved
End Load	10935 lbs. Maximum
Fitting Size 1	5 in.
Pressure - Maximum	450 psi
