765 6 SUP OPN HI PRES BTRFLY VLV

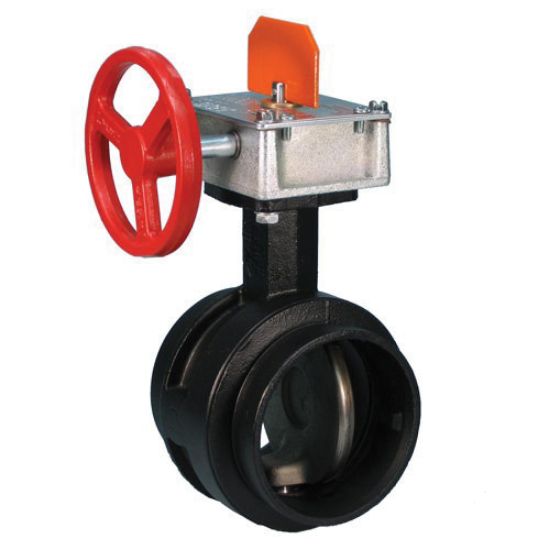

Victaulic FireLock V060765100 Ductile Iron High Pressure Supervised Open Butterfly Valve, 6 in., Grooved

$0.00

Qty:

FireLock High Pressure Supervised Open Butterfly Valve, 765 Series, 5.88 in. Length, 15.64 in. Height, Ductile Iron, End Connection 1: Grooved, End Connection 2: Grooved, Pressure - Maximum: 300 psi, 365# Pressure Class, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-582, Valve Body Style: Grooved, Ductile Iron with Electroless Nickel Coated Valve Disc, Nitrile Valve Seat, Valve Size: 6 in., Nitrile Stem Valve Seal, Dimension: 6-5/8 in. Actual Outside Diameter, 1800 (Full Open) Flow Co-Efficient (Cv), Coating: Black Alkyd Enamel, 416 Stainless Steel Valve Stem

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5.88 in.
Height	15.64 po
Material	Ductile Iron
Coating	Black Alkyd Enamel
Dimension	6-5/8 in. Actual Outside Diameter
End Connection 1	Grooved
End Connection 2	Grooved
Flow Co-Efficient (Cv)	1800 (Full Open)
Pressure - Maximum	300 psi
Pressure Class	365#
Valve Body Style	Grooved
Valve Disc Material	Ductile Iron with Electroless Nickel Coated
Valve Seal Material	Nitrile Stem
Valve Seat Material	Nitrile
Valve Size	6 in.
Valve Stem Material	416 Stainless Steel
