C++ 786 2 SLD BZ MANUAL BALANCING VLV

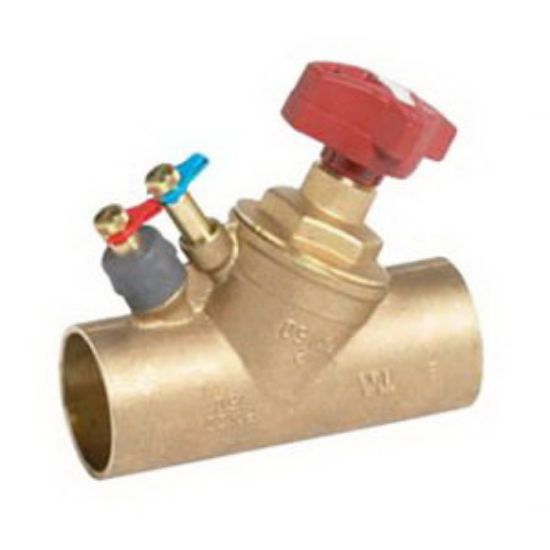

Victaulic Series 786 Soldered End Balancing Valve 2 in.

Manufacturer: Victaulic

$0.00

Qty:

Circuit Balancing Valve, 786 STAS Series, 6.13 in. Width, Material: Ametal (Pressure Die-Cast, Non-Porous Copper Alloy), End Connection 1: Solder, End Connection 2: Solder, Maximum Temperature: -4 to 250F, Pressure - Maximum: 300 psi, Style Name: Tour and Andersson, Valve Body Style: Y-Pattern Globe, Valve Operator: Digital Hand Wheel, Ametal (Pressure Die-Cast, Non-Porous Copper Alloy) Valve Seat, Valve Size: 2 in., EPDM Seat, Stem and Probe Valve Seal, Dimension: 2-3/8 in. Actual Outside Diameter, 4-3/4 in. Centre to Top, 38 (Full Open) Flow Co-Efficient (Cv), Red Polyamide Plastic Handle, Import Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	6.13 in.
Material	Ametal (Pressure Die-Cast, Non-Porous Copper Alloy)
Dimension	2-3/8 in. Actual Outside Diameter, 4-3/4 in. Centre to Top
End Connection 1	Solder
End Connection 2	Solder
Flow Co-Efficient (Cv)	38 (Full Open)
Handle Material	Red Polyamide Plastic
Maximum Temperature	-4 to 250F
Pressure - Maximum	300 psi
Style Name	Tour and Andersson
Valve Body Style	Y-Pattern Globe
Valve Operator	Digital Hand Wheel
Valve Seal Material	EPDM Seat, Stem and Probe
Valve Seat Material	Ametal (Pressure Die-Cast, Non-Porous Copper Alloy)
Valve Size	2 in.
Fitting Size 1	2 in.
