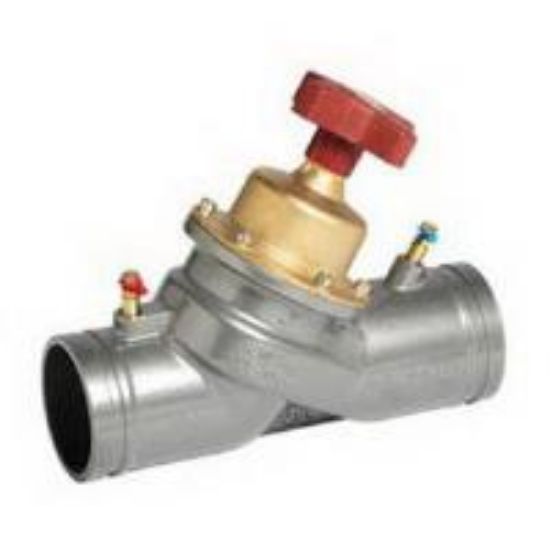

789 2-1/2 GRV DI MANUAL BALANCING VLV

Victaulic Series 789 Grooved End Balancing Valve 2 1/2 in., E-EPDM
Manufacturer: Victaulic
$0.00
Circuit Balancing Valve, 789 STAG Series, 11.38 in. Width, Ductile Iron, End Connection 1: Grooved, End Connection 2: Grooved, Maximum Temperature: -4 to 250F, Pressure - Maximum: 350 psi, Specifications - ASTM: ASTM A-536 Grade 60- 40-18 (BS Grade 400/15), Style Name: Tour and Andersson, Valve Body Style: Y-Pattern Globe, Grooved, Valve Operator: Digital Hand Wheel, Ductile Iron Valve Seat, Valve Size: 2-1/2 in., EPDM Seat, Stem and Probe Valve Seal, Dimension: 2-7/8 in. Actual Outside Diameter, 8 in. Centre to Top, 98.6 (Full Open) Flow Co-Efficient (Cv), Coating: Epoxy Resin, Ametal (Pressure Die-Cast, Non-Porous Copper Alloy) Valve Stem
Products specifications
products.specs.attributename products.specs.attributevalue
Width 11.38 in.
Material Ductile Iron
Coating Epoxy Resin
Dimension 2-7/8 in. Actual Outside Diameter, 8 in. Centre to Top
End Connection 1 Grooved
End Connection 2 Grooved
Flow Co-Efficient (Cv) 98.6 (Full Open)
Maximum Temperature -4 to 250F
Pressure - Maximum 350 psi
Style Name Tour and Andersson
Valve Body Style Y-Pattern Globe, Grooved
Valve Operator Digital Hand Wheel
Valve Seal Material EPDM Seat, Stem and Probe
Valve Seat Material Ductile Iron
Valve Size 2-1/2 in.
Valve Stem Material Ametal (Pressure Die-Cast, Non-Porous Copper Alloy)
Fitting Size 1 2 1/2 in.
