789 8 GRV DI MANUAL BALANCING VLV

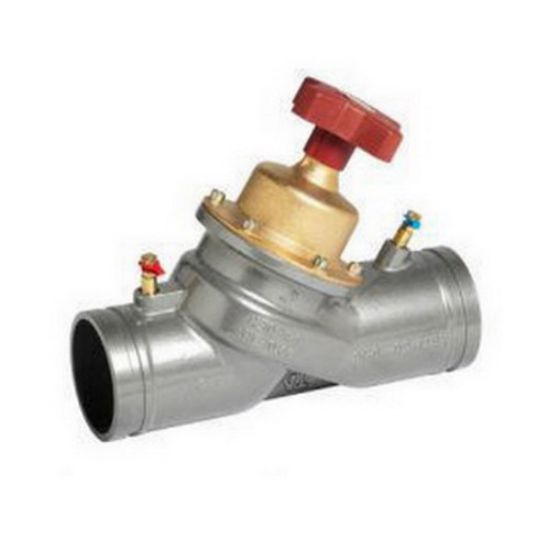

Victaulic Series 789 Grooved End Balancing Valve 8 in., E-EPDM
Manufacturer: Victaulic
$0.00
Circuit Balancing Valve, 789 STAG Series, 23.63 in. Width, Material: Ductile Iron, End Connection 1: Grooved, End Connection 2: Grooved, Maximum Temperature: -4 to 250F, Pressure - Maximum: 300 psi, Specifications - ASTM: ASTM A-536 Grade 60- 40-18 (BS Grade 400/15), Style Name: Tour and Andersson, Valve Body Style: Y-Pattern Globe, Valve Operator: Digital Hand Wheel, Ductile Iron Valve Seat, Valve Size: 8 in., EPDM Seat, Stem and Probe Valve Seal, Dimension: 8-5/8 in. Actual Outside Diameter, 17 in. Centre to Top, 887 (Full Open) Flow Co-Efficient (Cv), Coating: Painted, Ametal (Pressure Die-Cast, Non-Porous Copper Alloy) Valve Stem, Aluminum Handle, Import Origin
Products specifications
products.specs.attributename products.specs.attributevalue
Width 23.63 in.
Material Ductile Iron
Coating Painted
Dimension 8-5/8 in. Actual Outside Diameter, 17 in. Centre to Top
End Connection 1 Grooved
End Connection 2 Grooved
Flow Co-Efficient (Cv) 887 (Full Open)
Handle Material Aluminum
Maximum Temperature -4 to 250F
Pressure - Maximum 300 psi
Style Name Tour and Andersson
Valve Body Style Y-Pattern Globe
Valve Operator Digital Hand Wheel
Valve Seal Material EPDM Seat, Stem and Probe
Valve Seat Material Ductile Iron
Valve Size 8 in.
Valve Stem Material Ametal (Pressure Die-Cast, Non-Porous Copper Alloy)
Fitting Size 1 8 in.
