907 2 COUPLING T GASK PNT

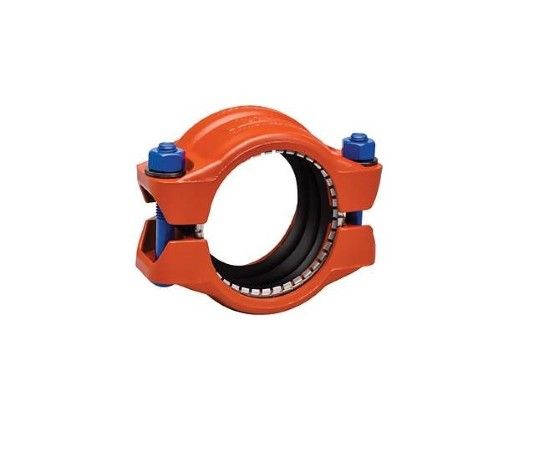

Victaulic L020907PT0 Style 907 2 in. Grooved Painted Ductile Iron Coupling with HDPE Grade T Gasket
Manufacturer: Victaulic
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Coating Enamel;Painted
Colour/Finish Category Oranges
Colour/Finish Name Orange
End Connection Grooved
End Connection 1 Grooved
End Connection 2 Grooved
Fitting Size 1 2 in.
Fitting Size 2 2 in.
Fitting Sizes 2 in. x 2 in.
Length 6-13/100 in.
Material Ductile Iron;Plastic
Material Type HDPE
Pressure - Maximum 160 psi
Specifications - ANSI ANSI 372;ANSI 61
Specifications - ASME ASME B18.21.1
Specifications - ASTM ASTM D-3035;ASTM F-714;ASTM D-3350;ASTM F-2619;ASTM A-536 Grade 65-45-12;ASTM A-449;ASTM A-563 Grade B;ASTM A-563M Class 9;ASTM B-633;ASTM F-436
Specifications - FM Approved Yes
Specifications - NSF NSF 372;NSF 61
Specifications - NSF Certified Yes
Style Name Style 907
Temperature Range -20 to 180 Deg F (-29 to 82 Deg C)
Weight 4.70 lb
Product Type Ductile Iron Couplings
