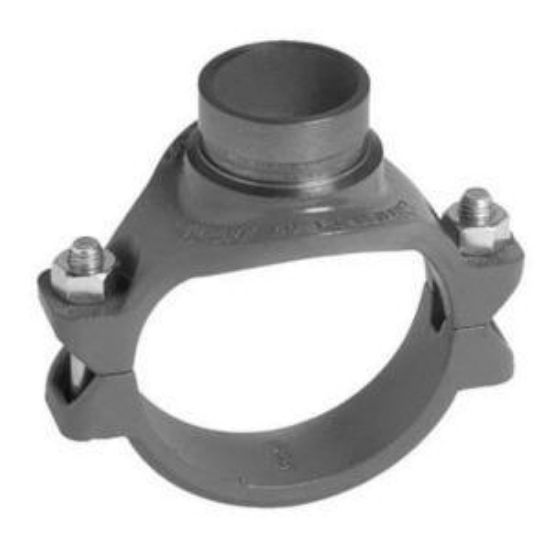

Picture of 920 6X2-1/2 GRV MEC-T OLET E GASK GLV

920 6X2-1/2 GRV MEC-T OLET E GASK GLV

Victaulic CE65920GE1 FireLock Style 920 6 in. x 6 in. x 2-1/2 in. Grooved Ductile Iron Mechanical-T Outlet with Grade E Gasket
Manufacturer: Victaulic
$0.00
Mechanical-T Bolted Branch Outlet with Grade E Gasket, Model: 920, 10.51 in. Length, 4.63 in. Width, Ductile Iron, Coating: Hot Dipped Galvanized, End Connection 1: Grooved, End Connection 2: Grooved, Grooved End Connection 3, Fitting Size 1: 6 in., Fitting Size 2: 6 in., 2-1/2 in. Fitting Size 3, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Pressure - Maximum: 500 psi, Other Physical Dimensions: 2-3/4 in. Hole Diameter, 4.01 in. Centre of Run to Engaged Pipe End, 5.13 in. Centre of Run to End of Fitting, Global Origin
Products specifications
products.specs.attributename products.specs.attributevalue
Coating Hot-Dipped Galvanized
End Connection Grooved
End Connection 1 Grooved
End Connection 2 Grooved
End Connection 3 Grooved
Fitting Size 1 6 in.
Fitting Size 2 6 in.
Fitting Size 3 2-1/2 in.
Fitting Sizes 6 in. x 6 in. x 2-1/2 in.
Length 10-51/100 in.
Material Ductile Iron
Maximum Temperature 230
Minimum Temperature -30
Pressure - Maximum 500 psi
Specifications - ANSI ANSI 61
Specifications - ASTM ASTM A-183;ASTM A-449;ASTM A-536 Grade 65-45-12
Specifications - FM Approved Yes
Specifications - NSF NSF 61
Specifications - NSF Certified Yes
Specifications - UL Listed Yes
Style Name FireLock Style 920
Temperature Range -30 to 230 Deg F
Weight 7.60 lb
Width 4-63/100 in.
Application Polybutylene Pipe;Polyethylene Pipe;Schedule 10 Carbon Steel Pipe;Schedule 40 Carbon Steel Pipe
Origin Import
Product Type Ductile Iron O-Lets
