C++ V4404 K16.8 ESFR PEN 162F/68C FR BR

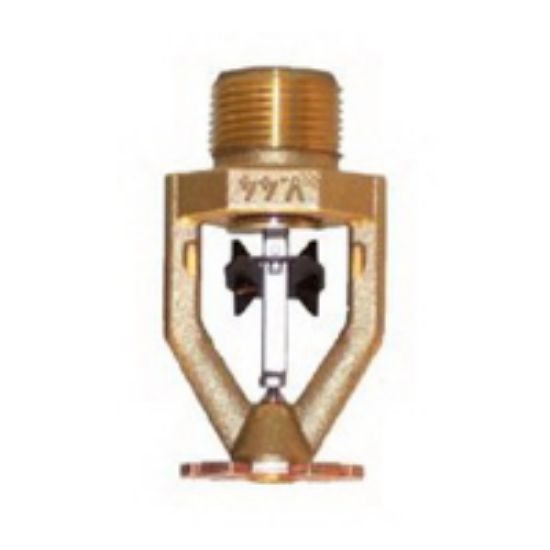

Victaulic FireLock V4404 Die-Cast Brass Frame Pendent Deflector Fast Response Early Suppression Standard Spray Sprinkler Head, 3/4 in. MNPT, 16.8 K-Factor, 162F

Manufacturer: Victaulic

$0.00

Qty:

FireLock Early Suppression Standard Spray Sprinkler Head, Model: V4404, 3-1/8 in. Height, Die-Cast Brass Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 3/4 in., 16.8 K-Factor, 162F Maximum - Temperature, Pressure - Maximum: 175 psi, Specifications - FM Approved: Yes, 100% at 500 psi Factory Hydrostatic Test, 100F Ambient Temperature Rating, Deflector: UNS C51000 Material Specification, All Hazard, V44 Open End Wrench, Pendent Deflector Type, Fast Response Type, Black Nickel Fusible Solder Link Element, Bronze Deflector Material

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	3-1/8 po
Material	Die-Cast Brass Frame
Ambient Temperature Rating	100F
Colour/Finish Name	Brass
Deflector Material	Bronze
Deflector Type	Pendent
Element	Black Nickel Fusible Solder Link
End Connection 1	MNPT
Factory Hydrostatic Test	100% at 500 psi
Fitting Size 1	3/4 in.
Hazard	All
K-Factor	16.8
Material Specification	Deflector: UNS C51000
Maximum Temperature	162F
Pressure - Maximum	175 psi
Response Type	Fast
Specifications - FM Approved	Yes
Wrench	V44 Open End
