V2707 155 WHI 1/2 PEND K5.6

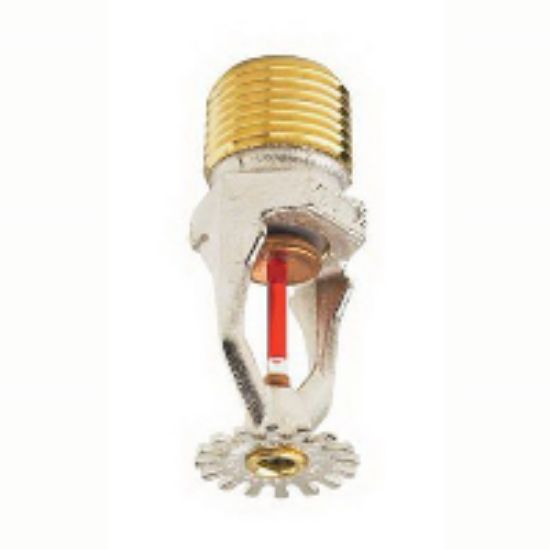

Victaulic FireLock V2707 White Painted Die-Cast Brass Frame Pendent Deflector Standard Response Spray Sprinkler Head, 1/2 in. MNPT, 5.6 K-Factor, 155F

Manufacturer: Victaulic

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Wrench	V27-2 Recessed, V27 Open End
Working Pressure	7 psi
Response Type	Standard
Material Specification	Deflector: UNS C51000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	155F
K-Factor	5.6
Hazard	All
Deflector Material	Bronze
Element	5mm Red Bulb
Deflector Type	Pendent
Ambient Temperature Rating	100F
Bulb Material	Glass with Glycerin Solution
Specifications - FM Approved	Yes
Orifice Size	1/2 in.
Colour/Finish Name	White Painted
Specifications - UL Listed	Yes
Height	2-3/8 in.
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	FM: 175 psi, UL: 250 psi
End Connection 1	MNPT
Fitting Size 1	1/2 in.
