V2708 135 CHR 1/2'' PEND 5.6K QR

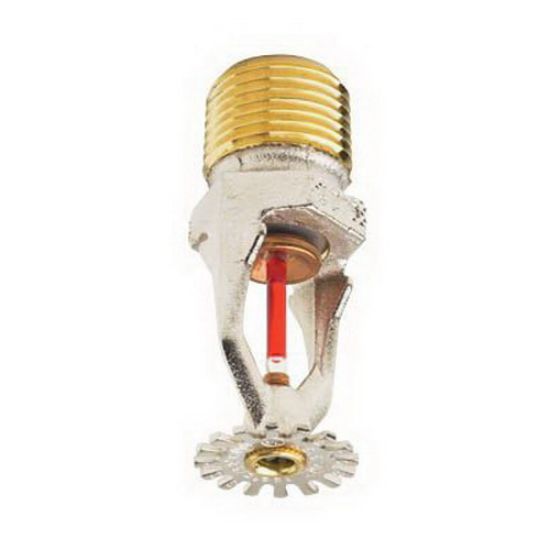

Victaulic K5.6 V2708 - Quick Response Pendent Sprinkler 135 Degree F / 57 Degree C, Chrome

Manufacturer: Victaulic

$0.00

Qty:

FireLock Standard Spray Sprinkler Head, Model: V2708, 2-3/8 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Chrome-Plated, End Connection 1: MNPT, Fitting Size 1: 1/2 in., 5.6 K-Factor, Maximum Temperature: 155F, Pressure - Maximum: FM: 175 psi, UL: 250 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 7 psi Working Pressure, Factory Hydrostatic Test: 100% at 500 psi, 100F Ambient Temperature, Global Origin, Material Specification: Deflector: UNS C51000, Hazard: All, V27-2 Recessed, V27 Open End Wrench, 1/2 in. Orifice Size, Pendent Deflector, Quick Response, 3mm Red Bulb Element, Glass with Glycerin Solution Bulb, Bronze Deflector

Products specifications

products.specs.attributename	products.specs.attributevalue
Wrench	V27-2 Recessed, V27 Open End
Working Pressure	7 psi
Response Type	Quick
Material Specification	Deflector: UNS C51000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	135F
K-Factor	5.6
Hazard	All
Deflector Material	Bronze
Element	3mm Orange Bulb
Deflector Type	Pendent
Ambient Temperature Rating	100F
Bulb Material	Glass with Glycerin Solution
Specifications - FM Approved	Yes
Orifice Size	1/2 in.
Colour/Finish Name	Chrome-Plated
Specifications - UL Listed	Yes
Height	2-3/8 in.
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	FM: 175 psi, UL: 250 psi
End Connection 1	MNPT
Fitting Size 1	1/2 in.
